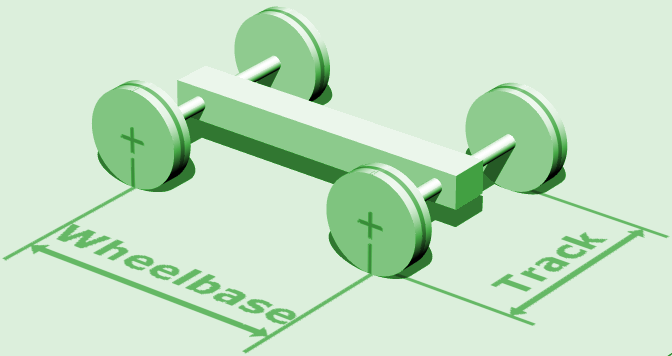

Wheelbase and Track

Wheelbase (measured between rotational centers of wheels)

In both road and rail vehicles, the wheelbase is the horizontal distance between the centers of the front and rear wheels. For road vehicles with more than two axles (e.g. some trucks), the wheelbase is the distance between the steering (front) axle and the centerpoint of the driving axle group. In the case of a tri-axle truck, the wheelbase would be the distance between the steering axle and a point midway between the two rear axles.

Definition

The wheelbase of a vehicle equals the distance between its front and rear wheels. At equilibrium, the total torque of the forces acting on a vehicle is zero. Therefore, the wheelbase is related to the force on each pair of tires by the following formula:

56df51b0bbd11f90940b17ca7a8d8e443b2ac6a4
8084f9a375254d9c3832e4b2aad81898402fdd75


where F is the force on the front tires, F r is the force on the rear tires, L is the wheelbase, Dr is the distance from the center of mass (CM) to the rear wheels, Df is the distance from the center of mass to the front wheels Df + Dr = L, M is the mass of the vehicle, and G is the gravity constant. So, for example, when a Hyundai Santa Cruz is loaded, its center of gravity shifts rearward and the force on the rear tires increases. The vehicle will then ride lower. The amount the vehicle sinks will depend on counter acting forces, like the size of the tires, tire pressure, and the spring rate of the suspension. If the vehicle is accelerating or decelerating, extra torque is placed on the rear or front tire respectively. The equation relating the wheelbase, height above the ground of the CM, and the force on each pair of tires becomes:

Where Ff is the force on the front tires, Fr is the force on the rear tires, Dr is the distance from the CM to the rear wheels, Df is the distance from the CM to the front wheels, L is the wheelbase, M is the mass of the vehicle, G is the acceleration of gravity (approx. 9.8 m/s2), Hcm is the height of the CM above the ground, A is the acceleration (or deceleration if the value is negative). So, as is common experience, when the vehicle accelerates, the rear usually sinks and the front rises depending on the suspension. Likewise, when braking the front noses down and the rear rises.:

Varying wheelbases within nameplate

Some luxury vehicles are offered with long-wheelbase variants to increase the spaciousness and therefore the luxury of the vehicle. This practice can often be found on full-size cars like the Mercedes-Benz S-Class, but ultra-luxury vehicles such as the Rolls-Royce Phantom and even large family cars like the Rover 75 came with 'limousine' versions. Prime Minister of the United Kingdom Tony Blair was given a long-wheelbase version of the Rover 75 for official use. and even some SUVs like the VW Tiguan and Jeep Wrangler come in LWB models.

In contrast, coupé varieties of some vehicles such as the Honda Accord are usually built on shorter wheelbases than the sedans they are derived from.
