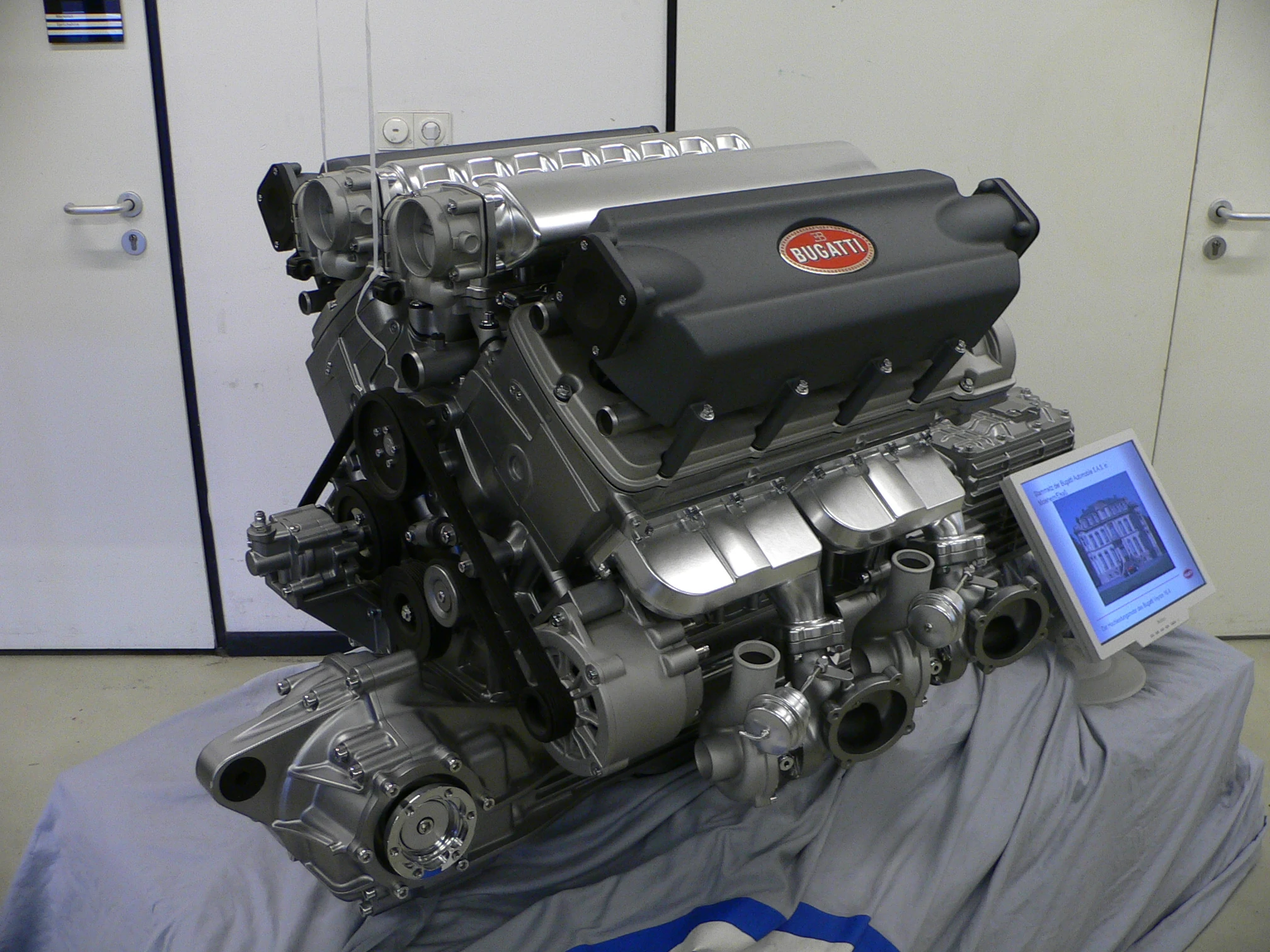

2005-2011 Bugatti Veyron engine
A W16 engine is a sixteen cylinder piston internal combustion engine in a W configuration. All W16 engines consist of two 'offset double-row' banks of eight cylinders,[1] coupled to a single crankshaft.
Volkswagen Group is the only automotive manufacturer currently producing W16 engines. Volkswagen Group's design is a stretched form of its W12 engine, which is itself based on technology from its VR6 engine. The W16 engine was introduced with the Bentley Hunaudieres Concept car, a mid-engined sports car, which was never intended for production (Bentley Motors Limited has been a Volkswagen Group holding since 1998). This W16 was later used in the Audi Rosemeyer Concept car.
W engine design[]
The VR6 engine is a narrow angle (15°) V6 engine, which could also be described as a staggered-inline six cylinder piston engine. The VR6 designed to fit within the confined engine bay of a front-wheel drive compact car. It is very short in length compared to an inline-six engine, because the cylinders are staggered, even cylinders moved forward, odd cylinders moved backward, but all contained in one cylinder bank, to reduce the length. Joining two such designs together into a W engine creates a design that is much shorter than a V engine with the same number of cylinders, but not too much wider. Volkswagen Group's W12 engines utilise two VR6-like sets of cylinders mated at 72 degrees, and the W8 engine consisted of two VR4 engines at the 72 degree angle. In the W16, each side is made up of eight cylinders, but the 'bank' angle is increased to 90 degrees.
Note that this design differs from the W18 engine that Volkswagen produced for its Bugatti concept cars of 1998 and 1999. The narrow angle of each set of cylinders allows just two overhead camshafts to drive each pair of banks, so just four are needed in total. For this reason, the engine is sometimes described as a WR16.
W16 engine specifications[]
The Volkswagen Group W16 engine as configured for the Bugatti Veyron EB16.4 is a 16 cylinder quad-turbocharged engine with four valves per cylinder. The engine is 71 centimetres (28 in) long, and weighs approximately 400 kilograms (882 lb). Maximum power output is 736 kilowatts (1,001 PS; 987 bhp) at 6,000 revolutions per minute (rpm), with a maximum torque of 1,250 newton metres (922 ft·lbf) (127.5 kgf·m) from 2,200 to 5,500 rpm.[2] Some automotive press outlets have also reported that the W16 engine has been considered for use in other Volkswagen Group products - specifically a Bentley.[3]
