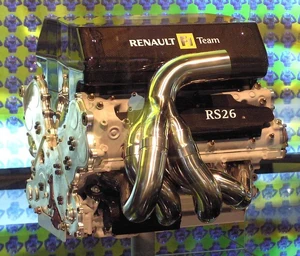

Renault RS26 engine 2006
Renault RS engine
Engine
Manufacturer Renault Sport
Mecachrome (1998 only)
Playlife (1998-2000)
Supertec (1999-2000)
aka {{{aka}}}
Type {{{Type}}}
Production/Introduction 1989-2013
Status Discontinued
Displacement 2.4–3.5 L (146.5–213.6 cu in)
Aspiration Normally aspirated
Configuration V
Cylinders 8-10
Fuel System Petrol
Lubrification {{{Lubrification}}}
Output 650–900 hp (485–671 kW; 659–912 PS)

221–340 lb⋅ft (300–461 N⋅m)

Bore {{{Bore}}}
Stroke {{{Stroke}}}
Compression {{{Compression}}}
In. Valves {{{In. Valves}}}
Ex. Valves {{{Ex. Valves}}}
Firing Order {{{Firing Order}}}
Left Bank {{{Left Bank}}}
Right Bank {{{Right Bank}}}
Length {{{Length}}}
Diameter {{{Diameter}}}
Width {{{Width}}}
Height {{{Height}}}
Dry Weight 90–141 kg (198.4–310.9 lb)
Fuel Consumption {{{Fuel Consumption}}}
Emission/s CO: {{{CO}}}
CO2: {{{CO2}}}
NOx: {{{NOx}}}
Hydrocarbon: {{{Hydrocarbon}}}
Particulate: {{{Particulate}}}
Chief Engineer Bernard Dudot (RS1-RS9)


The RS series is a family of naturally-aspirated Grand Prix racing engines, designed, developed and manufactured jointly by Mecachrome and Renault Sport for use in Formula One, and used by Arrows, BAR, Williams, Ligier, Lotus, Caterham, Benetton, Renault, and Red Bull, from 1989 until 2013.[1] The engines came in both the original V10, and later V8 configurations, and engine displacement ranged from 2.4 L (150 cu in) to 3.5 L (210 cu in) over the years. Power figures varied; from 650 hp (480 kW) @ 12,500 rpm, to later over 900 hp (670 kW) @ 19,000 rpm.[2] The 2.4-litre RS26 V8 engine, used in 2006, is one of the highest revving Formula One engines in history, at 20,500 rpm.[3][4][5][6] Between 1998 and 2000, the RS9 engines were badged as Mecachrome, Supertec, and Playlife.

Formula One engine specifications[]

Paris - Retromobile 2012 - Renault moteur F1 V10 - 001

Renault RS2 3.5 V10 engine (1990).

Renault RS3 1994 Autosport International

Renault RS3 3.5 V10 engine; used in the Williams FW14 (1991-1992).[6]

Renault RS7 rear Donington Grand Prix Collection

1995 Renault RS7 3.0 V10 engine; used in Williams FW17 and Benetton B195.[7][1]

Naturally-aspirated V10 engines[]

Engine name Bank angle (°) Configuration Displacement (L) Aspiration Output Year Wins
RS1 67 V10 3.5 Naturally-aspirated 650 hp @ 12,500 rpm 1989 N/A
RS2 660 hp @ 12,800 rpm 1990
RS3 700 hp @ 12,500 rpm 1991
RS4 750 hp @ 13,000 rpm 1992 Nigel Mansell (World Drivers' Championship)

Williams-Renault (World Constructors' Championship)

RS5 760-780 hp @ 13,800 rpm 1993 Alain Prost (World Drivers' Championship)

Williams-Renault (World Constructors' Championship)

RS6/RS6B/RS6C 790-830 hp @ 14,300 rpm 1994 Williams-Renault (World Constructors' Championship)
RS7 3.0 675-700 hp @ 15,200-15,600 rpm[8] 1995 Michael Schumacher (World Drivers' Championship)

Benetton-Renault (World Constructors' Championship)

RS8 700-760 hp @ 14,500-16,000 rpm[7][9] 1996 Damon Hill (World Drivers' Championship)

Williams-Renault (World Constructors' Championship)

RS9 71 730-760 hp @ 14,600-16,000 rpm[10] 1997 Jacques Villeneuve (World Drivers' Championship)

Williams-Renault (World Constructors' Championship)

Mecachrome/Playlife GC37-01 (Renault RS9)[11][12] 750-775 hp @ 14,000-15,600 rpm 1998 N/A
Supertec/Playlife FB01 (Renault RS9)[13][14] 750-780 hp @ 14,000-15,800 rpm 1999
Supertec/Playlife FB02 (Renault RS9) 780 hp @ 15,800 rpm 2000
RS21 112 780 hp @ 17,400 rpm 2001 N/A
RS22 825 hp @ 17,500 rpm[9] 2002
RS23 830-850 hp @ 18,000 rpm[15] 2003
RS24 72 880-900 hp @ 19,000 rpm[16] 2004
RS25 900+ hp @ 19,000 rpm[17] 2005 Fernando Alonso (World Drivers' Championship)

Renault (World Constructors' Championship)

Renault F1 RS27 - Flickr - Cha già José

Renault RS27

Naturally-aspirated V8 engines[]

Engine name Bank angle (°) Configuration Displacement (L) Aspiration Output Year Wins
RS26 90 V8 2.4 Naturally-aspirated 775-800 hp @ 20500 rpm[9] 2006 Fernando Alonso (World Drivers' Championship)

Renault (World Constructors' Championship)

RS27 770 hp @ 19000 rpm 2007 N/A
>770 hp @ 19000 rpm 2008
>750 hp @ 18000 rpm[18] 2009
>750 hp @ 18000 rpm 2010 Sebastian Vettel (World Drivers' Championship)

Red Bull-Renault (World Constructors' Championship)

2011 Sebastian Vettel (World Drivers' Championship)

Red Bull-Renault (World Constructors' Championship)

>750 hp @ 18000 rpm[19][20] 2012 Sebastian Vettel (World Drivers' Championship)

Red Bull-Renault (World Constructors' Championship)

>750 hp @ 18000 rpm 2013 Sebastian Vettel (World Drivers' Championship)

Red Bull-Renault (World Constructors' Championship)

Applications[]

  • Note: Including Mecachrome, Supertec, and Playlife-badged engines.

Renault RS Formula One engine World Championship results[]

References[]

  1. 1.0 1.1 "Engine Renault • STATS F1". https://www.statsf1.com/en/moteur-renault.aspx.
  2. "Formula One engines". https://www.f1technical.net/articles/4. [dead link]
  3. "Renault R26". 30 April 2009. https://sportscardigest.com/renault-r26/.
  4. Hughes, Mark. "Profile – Renault R26". https://www.motorsportmagazine.com/archive/article/april-2007/45/profile-renault-r26.
  5. "F1 Technique: Looking at the Renault Sport RS27 Formula 1 engine | Car News | Auto123". https://www.auto123.com/en/news/f1-technique-looking-at-the-renault-sport-rs27-formula-1-engine/35495/.
  6. 6.0 6.1 "Lancement BWT Alpine F1 Team". https://events.bwtalpinef1team.com/.
  7. 7.0 7.1 Cite error: Invalid <ref> tag; no text was provided for refs named auto1
  8. "Benetton-Renault B195 | Technik Museum Sinsheim | Germany". https://sinsheim.technik-museum.de/en/benetton-renault-b195.
  9. 9.0 9.1 9.2 "Renault, since 40 years in formula 1". Projekt Renault. n.d.. https://www.projekt-renault.de/images/pdf/130717_renault_since_40_years_in_f1_en.pdf.
  10. De Groote, Steven (2011-08-25). "Looking back on Toyota F1 engine development". https://www.f1technical.net/features/16578.
  11. "Engine Mecachrome • STATS F1". https://www.statsf1.com/en/moteur-mecachrome.aspx.
  12. "Engine Playlife • STATS F1". https://www.statsf1.com/en/moteur-playlife.aspx.
  13. "Engine Supertec • STATS F1". https://www.statsf1.com/en/moteur-supertec.aspx.
  14. "Bonhams : The ex-Alessandro Zanardi - 14 Grand Prix races,1999 Williams-Supertec Renault FW21 Formula 1 Racing Single-Seater Chassis no. FW21-05". https://www.bonhams.com/auctions/21907/lot/237/.
  15. Mourao, Paulo (1 June 2018). "Smoking Gentlemen—How Formula One Has Controlled CO2 Emissions". Sustainability 10 (6): 1841. doi:10.3390/su10061841. Page Module:Citation/CS1/styles.css has no content.ProQuest 2108752040.
  16. "Bore and stroke on early 2000,s V10 engines - F1technical.net". https://www.f1technical.net/forum/viewtopic.php?t=28171.
  17. Knutson, Dan (17 November 2005). "Renault V-10 went out a winner". https://www.espn.com/racing/news/story?series=f1&id=2227063.
  18. "About RS27". Renault official. http://www.renaultsport.com/About-RS27.html. Retrieved 2015-01-27.
  19. Lua error in package.lua at line 80: module 'Module:Lang/ISO 639 synonyms' not found."Le Renault RS27 plus puissant en 2012". Auto Hebdo. http://www.autohebdo.fr/f1/f1/article-25-25-9431/070212-le-renault-rs27-plus-puissant-en-2012. Retrieved 2015-01-27.
  20. "Renault Motor RS27". http://www.renault.com.gh/discover/MoteurRS272012.html.
