File:Overhead Valve V8.jpg

An overhead valve (OHV) engine, also called pushrod engine or I-head engine is a type of piston engine that places the camshaft in the cylinder block (usually beside and slightly above the crankshaft in a straight engine or directly above the crankshaft in the V of a V engine) and uses pushrods or rods to actuate rocker arms above the cylinder head to actuate the valves. Lifters or tappets reside in the engine block between the camshaft and pushrods.

This contrasts with an overhead cam (OHC) design which places the camshafts above the cylinder head and drives the valves directly or through short rocker arms. In an OHC engine, the camshafts are normally part of the cylinder head assembly, while in an I-head engine the camshaft (rarely more than one) is part of the main engine block assembly.

In 1949, Oldsmobile introduced the Rocket V8. It was the first high-compression I-head design, and is the archetype for most modern pushrod engines. General Motors is the world's largest pushrod engine producer with engines such as the 3800 Series III Supercharged V6 (260 hp, 280 lbf·ft torque), LS7 Chevrolet Corvette 7.0 L V8 Engine (505 hp, 475 lbf·ft torque) and LS4 5.3 L DOD V8 (303 hp, 323 lbf·ft torque). Fewer pushrod type engines remain in production, a result of the fact that it has become difficult to achieve competitive engine performance with the configuration. However, in 2002, Chrysler introduced a new pushrod engine: a 5.7L Hemi engine. The new Chrysler Hemi engine presents advanced features such as variable displacement technology and has been a popular option with buyers. The Hemi was on the Ward's 10 Best Engines list for 2003 through 2007.

History[]

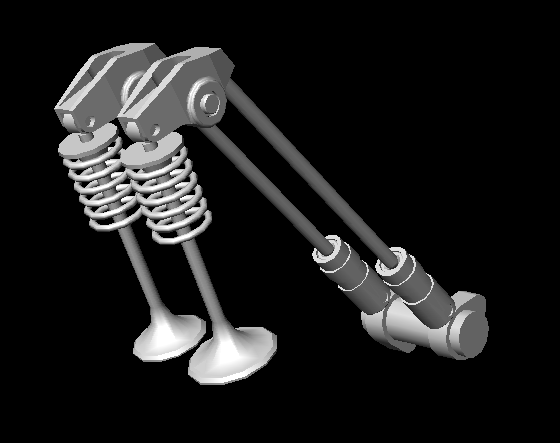

Pushrod2

Components of a pushrod valve actuation system

In automotive engineering, an overhead valve internal combustion engine is one in which the intake and exhaust valves and ports are contained in the cylinder head.

The original overhead valve or OHV piston engine was developed by the Scottish-American David Dunbar Buick. It employs pushrod-actuated valves parallel to the pistons and this is still in use today. This contrasts with previous designs which made use of side valves and sleeve valves.

Nowadays, side-valves have virtually disappeared (except perhaps in lawn-mower engines) and valves are almost all "overhead". However most are now driven more directly by the overhead camshaft system and these are designated OHC instead (either SOHC or DOHC).

Pushrod engines have become less common in recent years, serving primarily as either truck engines or as budget V6 models for General Motors, though Chrysler's HEMI engines are a notable exception. Pushrod engines are nearly extinct among other automakers.

Advantages[]

In contrast, pushrod engines have specific advantages:

  • Smaller overall packaging - Because of the camshaft's location inside the engine block, pushrods are more compact than an overhead cam engine of comparable displacement. For example, Ford's 4.6 L OHC modular V8 is larger than the 5.0 L I-head Windsor V8 it replaced. GM's 4.6 L OHC Northstar V8 is slightly taller and wider than GM's larger displacement 5.7 to 7.0 L I-head LS V8. The Ford Ka uses the venerable Kent Crossflow pushrod engine to fit under its low bonnet line.
  • Less complex drive system - Pushrod engines have a less complex drive system when compared with OHC engines. Most OHC engines drive the camshaft or camshafts using a timing belt, a chain or multiple chains. These systems require the use of tensioners which add some complexity to the engine. In addition, failure of the timing belt or chain can sometimes result in the pistons colliding with the open valves, resulting in severe damage to the engine.

Limitations[]

Three specific problems remain with pushrod engines:

  • Limited engine speeds or rpm - Pushrod engines have more reciprocating mass, suffer more easily from valve "float", and exhibit a tendency for the pushrods themselves to flex or snap at high engine speeds. Therefore a pushrod engine cannot revolve ("rev") at engine speeds as high as an OHC design. Modern pushrod engines generally rev to 6,000 rpm: compare this to modern OHC engines that can easily rev from 7,000 rpm in average engines to near 20,000 rpm in Formula One racing engines. High-rev pushrod engines have also been developed — in 1969, Chevrolet offered a Camaro Z28 with a pushrod V8 that could rev to 8,000 rpm and the Volvo B18 and B20 engines can rev to more than 7,000 rpm. Various pushrod racing engines are capable of reaching from 9,000 in some series to 10,500 rpm in others.


  • Limited design flexibility - The biggest benefit of an OHC design is the use of multiple intake and exhaust valves and variable valve timing. Most modern pushrod engines have two valves per cylinder, while many OHC engines use three, four or even five valves per cylinder to achieve greater efficiency and power. Recently, however, GM has begun offering a pushrod V6 with VVT, and Cummins' ISB is a 4-valve pushrod straight-6. The GM 3900 was the first mass-produced pushrod engine to feature variable valve timing. The system adjusts both intake and exhaust timing between only two settings, it can not vary the intake and exhaust cams independently. There is even a company called Arao Engineering that developed and patented a 32-valve aluminum cylinder head for various pushrod engines like the small/big block Chevrolet engines and Ford small/big block engines.

1994 Mercedes Indianapolis 500 engine[]

The Indy 500 race in Indianapolis each year bears some vestige of its original purpose as a proving ground for automobile manufacturers, in that it once gave an advantage in engine displacement to engines based on stock production engines, as distinct from out-and-out racing engines designed from scratch. One factor in identifying production engines from racing engines was the use of pushrods, rather than the overhead cams used on most modern racing engines; Mercedes-Benz realized before the 1994 race that they could very carefully tailor a purpose-built racing engine using pushrods to meet the requirements of the Indy rules and take advantage of the 'production based' loophole but still design it to be state of the racing art in all other ways, without any of the drawbacks of a real production-based engine. They entered this engine in 1994, and, as expected, dominated the race. After the race, the rules were changed in order to reduce the amount of boost pressure allowed to be supplied by the turbocharger. The inability of the engine to produce competitive power output after this change caused it to become obsolete after just the one race. Mercedes-Benz knew this beforehand, deciding that the cost of engine development was worth one win at Indianapolis.

Comparison of engine configurations and types[]

Comparing engines is not an exact science. This table shows the comparison of some of the most important features when looking at an engine

Engine name Capacity Geometry Type Car Engine weight Power RPM power Torque RPM torque Power/Weight
(liters) (application) (lb) (HP,SAE) (rpm) (lbf·ft) (rpm) (hp/lb)
F140 6.0 V12 DOHC 2002 Ferrari Enzo 496 660 7,800 485 5,500 1.33
13B-MSP (Renesis) 1.3 2-Rotor Wankel 2003 Mazda RX-8 180 238 8,500 159 5,500 1.32
M80 5.7 V10 DOHC 2005 Porsche Carrera GT 472 605 8,000 435 5,750 1.28
F130 4.7 V12 DOHC 1995 Ferrari F50 437 513 8,500 347 6,500 1.17
LS7 7.0 V8 pushrod 2006 Corvette Z06 458 505 6,300 470 4,800 1.10
AMG 6.3 6.2 V8 DOHC 2007 Mercedes CLK63 AMG 439 475 6,800 465 5,000 1.08
LS3 6.2 V8 pushrod 2008 Chevrolet Corvette C6 420 436 5,900 428 4,400 1.02
S85 5.0 V10 DOHC 2007 BMW M5 & BMW M6 529 500 7,750 383 6,100 0.94
SRT-10 8.3 V10 pushrod 2006 Dodge Viper 650 510 5,600 535 4,600 0.79
S62 5.0 V8 DOHC 2003 BMW M5 527 396 6,600 370 3,800 0.75

Comparison of naturally-aspirated engines for race and road legal track day cars

Engine name Capacity Geometry Type Car Engine weight Power RPM power Torque RPM torque Power/Weight Reference
(liters) (application) (lb) (HP) (rpm) (lbf·ft) (rpm) (hp/lb)
BMW P84/5 3.0 V10 DOHC 2005 Williams FW27 F1 203 925 19,000 NA NA 4.56 [1]
Ferrari Tipo 052 3.0 V10 DOHC 2003 Ferrari F2003-GA F1 203 920 19,500 NA NA 4.53 [2]
Powertec RPB V8 2.8 V8 DOHC Radical SR9 194 450 NA 250 NA 2.32 [3]
Motopower RST-V8 2.0 V8 DOHC Various 163 340 10,250 190 7,000- 7,800 2.09 [4]
Powertec RPA V8 2.6 V8 DOHC Radical SR8 194 380 NA 215 NA 1.96 [5]
