Nissan VK engine

Nissan VK
Engine
Manufacturer	Nissan
aka	{{{aka}}}
Type	{{{Type}}}
Production/Introduction	2002-Present
Status	{{{Status}}}
Displacement	4.5 L; 274.2 cu in (4,494 cc) 5.0 L; 306.7 cu in (5,026 cc) 5.6 L; 338.8 cu in (5,552 cc)
Aspiration
Configuration	90° V8
Cylinders	8
Fuel System	SFI, GDI
Lubrification	{{{Lubrification}}}
Output	305–650 hp (227.4–484.7 kW)
Bore	93 mm (3.66 in) 95.5 mm (3.76 in) 98 mm (3.86 in)
Stroke	82.7 mm (3.26 in) 87.7 mm (3.45 in) 92 mm (3.62 in)
Compression	11.0:1, 10.9:1
In. Valves	{{{In. Valves}}}
Ex. Valves	{{{Ex. Valves}}}
Firing Order	{{{Firing Order}}}
Left Bank	{{{Left Bank}}}
Right Bank	{{{Right Bank}}}
Length	{{{Length}}}
Diameter	{{{Diameter}}}
Width	{{{Width}}}
Height	{{{Height}}}
Dry Weight	{{{Dry Weight}}}
Fuel Consumption	{{{Fuel Consumption}}}
Emission/s	CO: {{{CO}}} CO2: {{{CO2}}} NOx: {{{NOx}}} Hydrocarbon: {{{Hydrocarbon}}} Particulate: {{{Particulate}}}
Chief Engineer	{{{Chief Engineer}}}

The VK engine (formerly known as the ZH) is a V8 piston engine from Nissan. It is an aluminum DOHC 4-valve design.

The VK engine was originally based on Nissan's VQ V6 rather than the VH V8 used in previous Q45/Cima models. Changes include: a variable intake manifold, newly designed heads, and a larger drive by wire throttle chamber. The intake manifold directs air through different paths at different engine speeds to optimise low-end torque or high-end horsepower.

VK45DE


VK45DE

The 4,494 cc (4.5 L; 274.2 cu in) VK45DE was introduced in 2002 and is built in Yokohama, Japan. Bore and stroke is 93 mm × 82.7 mm (3.66 in × 3.26 in). Output is 340 hp (254 kW; 345 PS) at 6,400 rpm with 46 kg⋅m (451 N⋅m; 333 lbf⋅ft) of torque at 4,000 rpm. Redline is at 6,600 rpm. It has an aluminum engine block and aluminum DOHC cylinder heads. It uses SFI, has 4 titanium valves per cylinder with VVT and features forged steel connecting rods, 4 one-piece cast camshafts, an unusual variable-flow induction system optimizes airflow for low- and high-speed operation, low-friction molybdenum-coated pistons, and a microfinished crankshaft.

Motorsport

A flat-plane crankshaft version of the VK45DE was used by Nismo for Super GT races with the Nissan GT-R instead of using the GT-R's VR38DETT twin-turbo V6 engine. The VK45DE was previously used in Nissan's 350Z Super GT car in 2007, replacing the previous VQ30DETT used in that car. In race trim, the Super GT VK45DE produces 500 PS (368 kW; 493 hp) and 52 kg⋅m (510 N⋅m; 376 lbf⋅ft) of torque. The engine idles at around 3,500 rpm and is restricted to the above specified power output. Without such restrictions, the engine is reputedly capable of producing nearly 800 PS (588 kW; 789 hp). Nismo reasons that by using the engine, they eliminate turbo lag, save weight and generally prefer the torque curve of the atmospheric V8.

Applications

Years	Model	Power output	Torque
2002–2006	Infiniti Q45	340 hp (254 kW)	46 kg⋅m (451 N⋅m; 333 lbf⋅ft)
2003–2008	Infiniti FX45	320 hp (239 kW)	45.5 kg⋅m (446 N⋅m; 329 lbf⋅ft)
2003–2004	Infiniti M45	340 hp (254 kW)	46 kg⋅m (451 N⋅m; 333 lbf⋅ft)
2006–2010	Infiniti M45	325 hp (242 kW)	47 kg⋅m (461 N⋅m; 340 lbf⋅ft)
2004–2010	Nissan Fuga 450 GT	333 hp (248 kW)	47 kg⋅m (461 N⋅m; 340 lbf⋅ft)
2003–2010	Nissan President	276 hp (206 kW)	46 kg⋅m (451 N⋅m; 333 lbf⋅ft)
2007	Super GT Nissan 350Z	490 hp (365 kW)	52.5 kg⋅m (515 N⋅m; 380 lbf⋅ft) (Non-Production)
2008-2009	Super GT Nissan GT-R	490 hp (365 kW)	52.5 kg⋅m (515 N⋅m; 380 lbf⋅ft) (Non-Production)
2011–2016	Various LMP2 racing cars	450 hp (336 kW)	59.4 kg⋅m (583 N⋅m; 430 lbf⋅ft) (Non-Production)

VK45DD

The VK45DD is a 4,494 cc (4.5 L; 274.2 cu in) V8 engine that is very similar to the VK45DE but adds a direct injection fuel system. This was Nissan's first V8 with direct injection (NEO-Di). It officially produces 280 PS (206 kW; 276 hp) at 6,000 rpm and 46 kg⋅m (451 N⋅m; 333 lbf⋅ft) at 3,600 rpm, but it has unofficially over 300 PS (221 kW; 296 hp). It has a compression ratio of 11.0:1, and a bore and stroke of 93 mm × 82.7 mm (3.66 in × 3.26 in).

Applications

• 2001–2004 Nissan Cima (JDM)

VK50VE

File:2008 Nissan VK50VE engine front.jpg

Nissan VK50VE Engine.

The VK50VE is a 5,026 cc (5.0 L; 306.7 cu in) V8 engine with 390 hp (291 kW) at 6,500 rpm and 51 kg⋅m (500 N⋅m; 369 lbf⋅ft) at 4,400 rpm and redline is set at 6,800 rpm. Bore x stroke are 95.5 mm × 87.7 mm (3.76 in × 3.45 in) and compression ratio is 10.9:1. The valvetrain is a dual overhead cam (DOHC) design with a continuously variable valve timing control system (CVTCS). The engine also features Nissan's VVEL valve timing technology.

Applications

• 2009–2013 Infiniti FX50
• 2014 Infiniti QX70

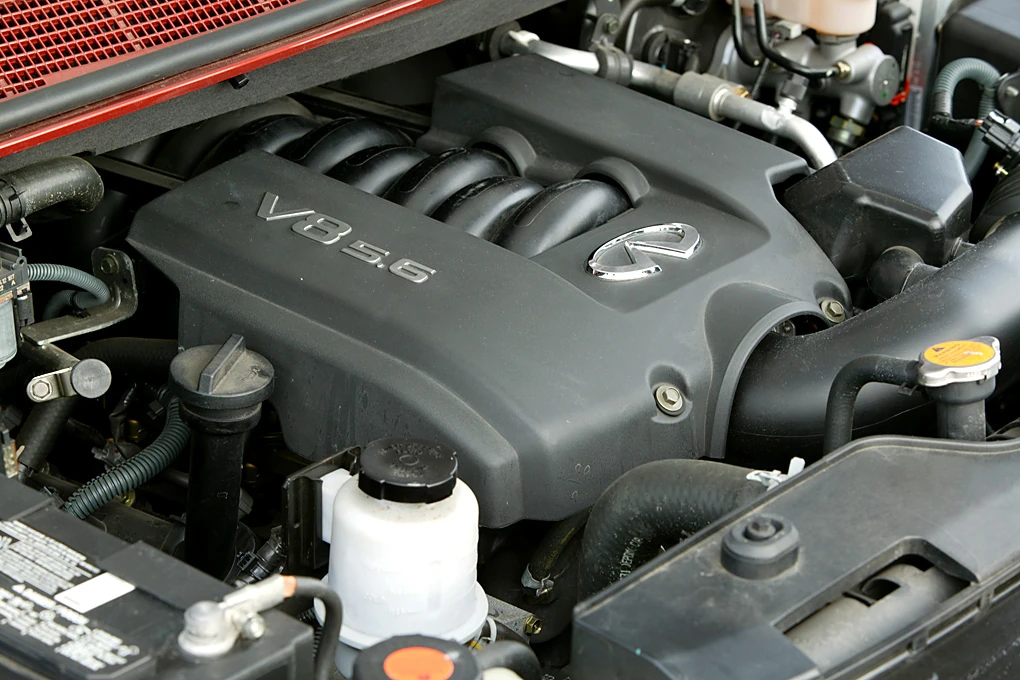

VK56DE

File:Nissan VK56DE 001.JPG

Nissan VK56DE engine.

The VK56DE is a 5,552 cc (5.6 L; 338.8 cu in) version built in Decherd, Tennessee. Bore and stroke is 98 mm × 92 mm (3.9 in × 3.6 in). Output is 317–320 hp (236–239 kW; 321–324 PS) at 4,900 rpm with 522 to 533 N⋅m (385 to 393 lb⋅ft) of torque at 3,600 rpm. It has aluminum-alloy block and heads and low-friction molybdenum-coated pistons. The valvetrain is a dual overhead cam (DOHC) design with a continuously variable valve timing control system (CVTCS) on the intake valves. It also has 4 valves per cylinder with micro-finished camshafts and ductile iron cylinder liners for increased durability.

Motorsport

Nismo also uses the VK56DE for FIA GT1 racing. In race trim, it produces 600 hp (447 kW) and 650 N⋅m (479 lbf⋅ft) of torque.

The Nissan Motorsport VK56DE was launched in Australia for the V8 Supercars Championship in 2013 by Kelly Racing in Melbourne. The engine has been reduced in capacity to 4,990 cc (5.0 L; 304.5 cu in) to fit the V8 Supercars regulations. It has a bore and stroke of 102.69 mm × 75.31 mm (4.04 in × 2.96 in). It will be fitted to a Nissan Altima version of the V8 Supercars "Car of the Future" specification that will compete from 2013 onwards.

Applications

Years	Model	Power output	Torque
2004–2015	Nissan Armada	305 to 317 hp (227 to 236 kW)	53.2 kg⋅m (522 N⋅m; 385 lbf⋅ft)
2004–2015	Nissan Titan	305 to 317 hp (227 to 236 kW)	52.5 to 53.2 kg⋅m (515 to 522 N⋅m; 380 to 385 lbf⋅ft)
2004–2010	Infiniti QX56	315 to 320 hp (235 to 239 kW)	54 to 54.4 kg⋅m (530 to 533 N⋅m; 391 to 393 lbf⋅ft)
2010–2016	Nissan Patrol	320 hp (239 kW)	54.4 kg⋅m (533 N⋅m; 393 lbf⋅ft)
2008–2012	Nissan Pathfinder	310 hp (231 kW)	53.5 kg⋅m (525 N⋅m; 387 lbf⋅ft)
2012–2016	Nissan NV2500 HD	317 hp (236 kW)	53.2 kg⋅m (522 N⋅m; 385 lbf⋅ft)
2012–2016	Nissan NV3500 HD	317 hp (236 kW)	53.2 kg⋅m (522 N⋅m; 385 lbf⋅ft)
2012–2016	Nissan NV Passenger	317 hp (236 kW)	53.2 kg⋅m (522 N⋅m; 385 lbf⋅ft)
2009–2011	Nissan GT-R GT1	600 hp (447 kW)	66.3 kg⋅m (650 N⋅m; 480 lbf⋅ft) (Non-Production)
2013–2019	Nissan Altima, Supercars Championship	650 hp (485 kW)	67 kg⋅m (657 N⋅m; 485 lbf⋅ft) (Non-Production)
2015-	Various LMP3 racing cars	420 bhp (313 kW) (Non-production)

Notes:

• The Titan, Armada, and Pathfinder power figures are for regular 87 octane fuel. The 320 hp (239 kW) Infiniti QX56 & Nissan Patrol are tuned for premium (91+ octane) fuel.
• Some VK56DE powered vehicles are E85 capable.

VK56VD

File:NISSAN VK56VD.jpg

Nissan/Infiniti VK56VD Engine.

The VK56VD is a 5,552 cc (5.6 L; 338.8 cu in) 32-valve, DOHC, Direct Injection Gasoline (DIG) aluminum-alloy V8 and features Nissan's advanced VVEL (Variable Valve Event & Lift System). The direct injection system provides better wide-open throttle performance and improved fuel economy and emissions performance by reducing engine knock, improving combustion stability and controlling injection more precisely.

Applications

Years	Model	Power output	Torque
2010–present	Nissan Patrol	400 hp (298 kW)	57.1 kg⋅m (560 N⋅m; 413 lbf⋅ft)
2016–present	Nissan Patrol Nismo	428 hp (319 kW)	57.6 kg⋅m (565 N⋅m; 417 lbf⋅ft)
2011–present	Infiniti QX80	400 hp (298 kW)	57.1 kg⋅m (560 N⋅m; 413 lbf⋅ft)
2011–2013	Infiniti M56	420 hp (313 kW)	57.6 kg⋅m (565 N⋅m; 417 lbf⋅ft)
2014–2019	Infiniti Q70	420 to 436 hp (313 to 325 kW)	57.1 to 57.6 kg⋅m (560 to 565 N⋅m; 413 to 417 lbf⋅ft)
2017–present	Nissan NV2500 HD	375 hp (280 kW)	53.5 kg⋅m (525 N⋅m; 387 lbf⋅ft)
2017–present	Nissan NV3500 HD	375 hp (280 kW)	53.5 kg⋅m (525 N⋅m; 387 lbf⋅ft)
2017–present	Nissan NV Passenger	375 hp (280 kW)	53.5 kg⋅m (525 N⋅m; 387 lbf⋅ft)
2017–present	Nissan Titan	400 hp (298 kW)	57.1 kg⋅m (560 N⋅m; 413 lbf⋅ft)
2017–present	Nissan Armada	390 hp (291 kW)	54.6 kg⋅m (535 N⋅m; 395 lbf⋅ft)
