The Nissan 180SX was a hatchback coupe (though Nissan marketed it as a fastback in most of its markets) based on the S13 chassis from the Nissan S platform, and sold in Japan; and in some other countries under the 200SX name.[1]

Model nomenclature and markets[]

In North America, it was sold as the Nissan 240SX. It was sold as a sister model to the Nissan Silvia from model year 1989 through 1998. The S13 Silvia was discontinued in 1993, but the 180SX was successful enough to convince Nissan to keep it in the market for the full length of the next generation Silvia. The 180SX differed from the S13 Silvia in that it featured pop-up headlamps and a liftgate. Specifications and equipment were similar; however, the naturally aspirated CA18DE engine was not offered.[2]

The name 180SX was originally in reference to the 1.8 liter displacement CA18DET engine used in the chassis. In 1991, however, the engine was upgraded to a 2.0 liter model, offered in two forms: the naturally aspirated SR20DE engine and the turbocharged SR20DET variant. Although the new engine was of larger displacement, the 180SX nomenclature remained.

180SX was also a trim level of the S110 Silvia in Europe. The badges for this model read "Silvia 180SX", so this car is not properly a 180SX by model, but a version of the Silvia instead.

Other discrepancies from this standard were distributed to Micronesia and South Pacific islands, including LHD cars with 180sx badges and non-retractable headlamps.

Like the Japanese 180SX SR20DET discrepancy, European, as well as South African models of the S13 chassis were called 200SX though equipped with the CA18DET engine.

In Europe the car was sold as a 200SX and only featured the CA18DET engine producing  169 PS (124 kW; 167 hp) through the rear wheels, taking it to 100 km/h (62 mph) in 7.5 seconds and onto 220 km/h.[3] The car had a facelift in 1991 with new smoother bumpers, limited slip differential, and larger brakes. This model was sold between 1989 and 1994 until the change to the 200SX S14 version.

180SX generations[]

180SX.

Early model 180SX

The 180SX came in three major iterations: first was released in 1989, the second from 1991 to 1996, and the third that ended production in December 1998. S13

The first iteration of the 180SX came in two versions called Type I (standard type) and Type II (advanced type). Nissan's HICAS II four wheel steering system was optional only on the Type II 180SX. All versions had the CA18DET engine with 175 hp. The 5-speed manual and 4-speed automatic transmissions were available in all types.

The second iteration 180SX was released in January 1991 and included several major changes from the first model. This included the SR20DET engine with 202 hp. Although the engine was larger than the previous CA18DET engine the '180SX' nomenclature remained. The brakes were enlarged and limited slip differential added. The front bumper and parts of the interior were also redesigned. Type I and Type II were once again offered with only trim differences separating the two. The 15-inch alloy wheels also changed in design from the first model. Nissan's Super HICAS four wheel steering was an option on all models as were 5-speed manual and 4-speed automatic transmissions.

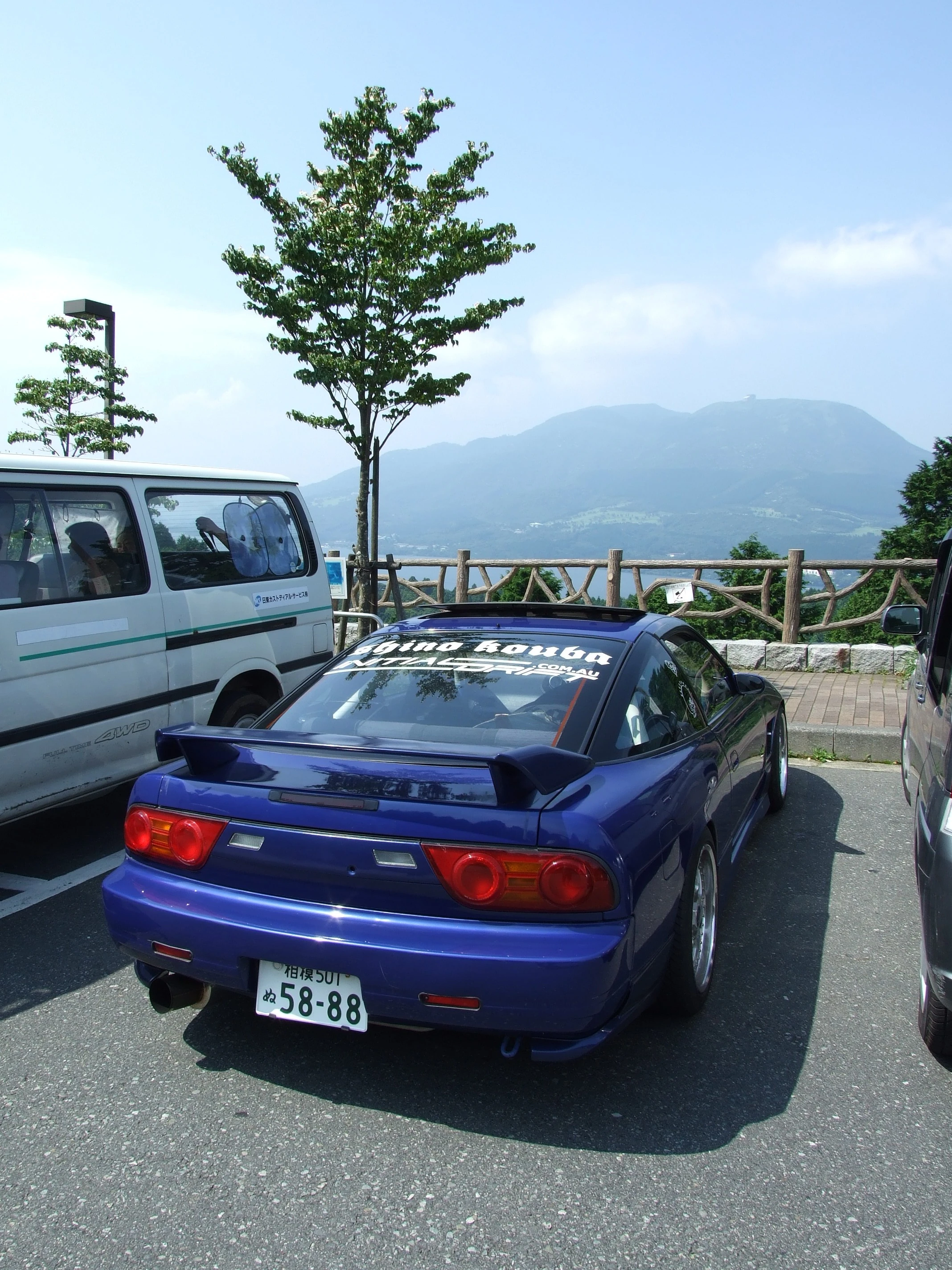

Kouki 180sx rear quarter view

Final 180SX, showing the revised tail lights, spoiler, and rear trims

The second iteration was facelifted in January 1992. Although the car largely remained visually and mechanically unchanged, an additional trim level called Type III was added. Electronic climate control and CD audio were also added as options.

An additional facelift was performed in 1994, the trim levels were renamed to Type R and Type X, with Type X being the higher of the two. Overall the car remained almost unchanged however.

A final facelift to the middle model occurred in May 1995 with the addition of a drivers side airbag and a change of alloy wheels amongst other minor details.

The final iteration was released in August 1996. It had a revised front bumper, tail lights, 15-inch wheels and interior. The mechanical and safety package received minor changes, such as the addition of a driver’s side airbag, seat belt pre-tensioners, and some changes in the wiring and ECU. Three levels of 180SX were offered: Type X, Type S and Type R, with the Type S being the first 180SX to be offered without a turbocharged engine.

The Type X and Type R both shared the same 205ps engine and overall mechanical package however the Type R lacked many of the cosmetic additions of the Type X such as the front lip, rear spoiler, side skirts and 15-inch alloy wheels. The Type S was powered by a naturally aspirated SR20DE engine with 140 ps, but was similar in mechanical and cosmetic details to the top of the range Type X. The Type S however did not have the option of Nissan's Super HICAS four-wheel steering system like the turbocharged models did.

The Type X and Type R ceased production in October 1997 however the Type S and an additional naturally aspirated model called the Type G continued production until December 1998 when all 180SX production ceased.

RS13U[]

Template:Dablink

200SX RS13U
[[{{{image}}}|250px]]
Manufacturer {{{manufacturer}}}
Country {{{country}}}
Production December 1988–December 1993 (prototypes from Jan '93)
Class {{{class}}}
Body style(s) {{{body style(s)}}}
Layout {{{layout}}}
Engine(s) {{{engine(s)}}}
Transmission(s) {{{transmission(s)}}}

The RS13U 200SX is a fastback 3 door hatch with a body shell like the Japanese market 180SX. The notchback coupe version was never offered in the European market - though a number of Japanese Silvia have been imported privately. Like its predecessor the Nissan Silvia (R)S12 in the European market it used pop-up headlights. The RS13U 200SX was made until December 1993 but sales continued from stocks in the UK until the end of 1994. For a few months both 200SX S14 and RS13U were available.

RS13U 200SX were all powered by the CA18DET engines carried over from the end of S12 RS-X production, with an intercooler added to the CA18DET for a slight increase in stability and power. The SR20DET was never offered as it would have needed a new European type test.

The chassis with McPherson front and multilink rear suspension was common to all S13 and RS13 models. The European 200SX initially had 257mm front brakes and rear disc service brakes with drum parking brakes in the rotor hubs. Later models had larger 280mm front brakes.

The European 200SX RS13U had a number of parts as standard that were Nismo optional parts in Japan. Water/oil heat exchanger. Differential oil cooler AND extended finned rear cover holding 0.6L more oil, even on models with open differential. Alloy radiator. 3.916 Final drive ratio. These were required as the RS13U 200SX has no speed limiter and any car in Europe could visit West Germany where on the Autobahn it could legally be held at very high speeds for a sustained length of time. Japanese cars are fitted with a 180 km/h, 112 mph speed limiter.

Digital climate control was not fitted to European models. HICAS rear wheel steering wasn't available. Nor was the later Japanese model's sports automatic gearbox control.

The FS5W71C gearboxes had different ratios to all other S13/S14. A key change was the layshaft gear which changed from 22/31 to 21/32, thus running the layshaft slower and at higher torque. This gearbox is considered weaker than other S13/S14 gearboxes. The front of the SR20DET gearbox with bell housing can be removed and a CA18DET bell housing fitted to allow the gearboxes to be swapped.

Trim level designation[]

UK[]

For the UK there were various trim levels but it never used GL/SL etc. that other Nissan models used.

The early models had highback sports style seats with a fixed headrest. The seats, door cards and glove box were fabric in a blue and brown stripe/flecked pattern. It had 13 hole "tear drop" alloy wheels, which gave a lower Cd than later 7 spoke wheels. The carpets were a short loop pile in black. A spoiler was fitted on the back of the hatch, this has an overhang to the rear.

On the introduction of the smooth bumper facelift Nissan also offered the "200SX Executive". This doesn't appear on the car at all but only on the UK vehicle Log Book. The Executive was a locally enhanced specification produced by the UK importer AFG. At launch and as tested by the press it initially had limited slip differential, leather seats (high back seats re-trimmed in UK), leather trimmed steering wheel and gear knob, headlamp washers, air con, sun roof and a multi change CD player in the boot. Some cars that were sold as Executive arrived without sunroof so a local accessory sun roof was fitted during the upgrade. It very quickly lost the CD player and the leather seats for low back seats with adjustable head rests. During the period that the Executive was sold the base model was downgraded to steel wheels. As most cars with steel wheels have had alloy wheels fitted and the grey waffle fabric trim on seats and doors was common, it's no longer easy to tell an Executive from a base model and the log book must be checked. The cabin carpet was now a long "cut" pile in a pale blue.

When the Executive was discontinued all 200SX got the 7 spoke alloys.

Late model UK cars sold in 1994 had a much higher trim level, often confused with the Executive. They had low back grey Leather seats, a slot CD player / radio and 3 CD storage drawers in the space below. The CD player also required use of a separate amplifier mounted under the CD player. The door and glove box trim was a suede like pale blue/grey Alcantara.

West Germany[]

German cars had a solenoid operated variable pressure windscreen wiper. It increases wiper blade pressure at speeds over 75 mph. This was to prevent the blades lifting off the screen at high speed.

In 1989 L.S.D became standard, a low back seat was introduced, headlamp aiming control was added.

Drifting[]

Yoshinori Koguchi 180sx at D1GP Fuji Speedway

Yoshinori Koguchi drifting a Nissan 180SX at D1 Grand Prix competition at Fuji Speedway in late-2007

The 180SX is used in the motorsport of drifting. The 2007 D1 Grand Prix champion Masato Kawabata drives a 180SX (although he won the 2007 title in a Nissan Silvia) as does the 2007 D1 Street Legal champion Kazuya Matsukawa.

Specifications[]

Engine[]

CA18DET SR20DE SR20DET
Aspiration Single Turbo Naturally Aspirated Single Turbo
Valvetrain DOHC 16 valve
Cylinders 4
Displacement 1809cc 1998cc
Max Power 127 kW (173 hp) @ 6400 rpm 102 kW (137 hp) @ 6400 rpm 153 kW (205 hp) @ 6000 rpm
Max Torque 225 Nm (166 ft•lbf) @ 4000 rpm 178 Nm (131 ft•lbf) @ 4200 rpm 274 Nm (203 ft•lbf) @ 4000 rpm
Drivetrain Rear wheel drive
Transmission 4-speed automatic / 5-speed manual

Performance[]

CA18DET SR20DE SR20DET
0–100 km/h 6.9/7.5s (manual/automatic) (Europe) 7.7s 6.5s
0-400m 14.9s(Best Motoring Tests) ? 17s 14.5s
Max speed 180 km/h, electronically limited / 230 km/h(Europe)

Suspension[]

Gear ratios[]

CA18DET Automatic CA18DET Manual CA18DET Manual (Europe) SR20DE Manual SR20DET Automatic SR20DET Manual
1st 3.027 3.321 3.592 3.321 2.785 3.321
2nd 1.619 1.902 2.057 1.902 1.545 1.902
3rd 1.000 1.308 1.361 1.308 1.000 1.308
4th 0.694 1.000 1.000 1.000 0.694 1.000
5th N/A 0.838 0.821 0.838 N/A 0.759
Final 4.363 4.363 3.916 4.111(S13) 4.083(S14/S15) 3.916 4.083

Related vehicles[]

The 180SX is one of the cars based on the Nissan S platform.

The S13 platform also includes:

  • Silvia - The first S13 based production car. Different body with no liftgate.
  • 240SX - North American version of the 180SX. Left hand drive with a 2.4 L NA engine.
  • Sileighty - A 180SX with S13 Silvia front end.
  • 200SX - Name given to the 180SX in Europe. This name was also given to the S14 and S15 series Silvia on the Australian market.

References[]

  1. Nissan 200SX Model S13 Series Service Manual. Nissan Motors. 1988.
  2. "日産:NISSAN MUSEUM シルビア". Nissan.co.jp. http://www.nissan.co.jp/MUSEUM/SILVIA/S13/main.html. Retrieved 2010-09-04. [dead link]
  3. "SILVIA / SX". dnsf.org. http://www.dnsf.org/index.php?group=AUTOINFO&id=61&pid=22. Retrieved 2011-04-25.
