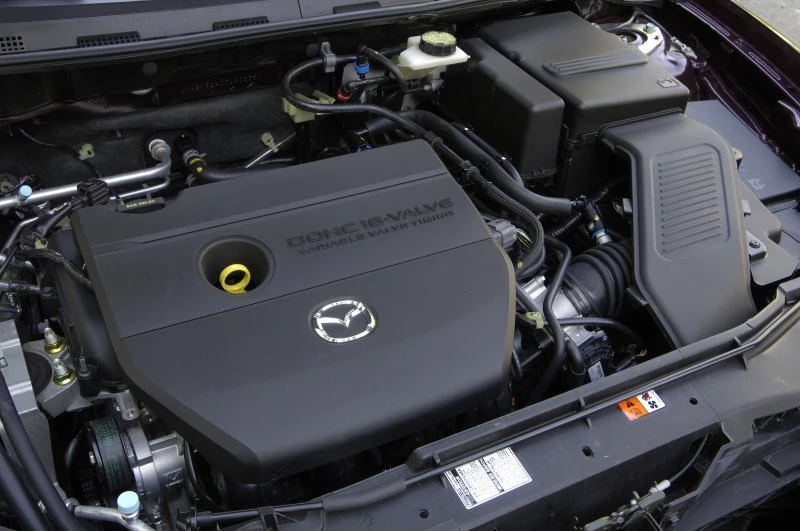

Mz 07mazda3 engine
Mazda Z
Manufacturer Mazda
aka Type aka here, not up there
Type Note what type of fuel it consumes
Production/Introduction produced/introduced from when to when
Status Note if it is "In Production", "In Development", a "Concept Only", "Stillborn" or "Discontinued"
Displacement in litres, cc's or cu-in.
Aspiration write its type of aspiration
Configuration write the configuration of the cylinders
Cylinders write the number of cylinders present
Fuel System write if it is injected or carburated and the system used
Lubrification indicate the engine's type of lubrification
Output N/A hp @ N/A rpm
N/A lb-ft. of torque @ N/A rpm
Bore in inches
Stroke in inches
Compression write compression ratio here
In. Valves in inches
Ex. Valves in inches
Firing Order Firing order of cylinders
Left Bank Write which cylinders are in this bank (write N/A if it it is inline)
Right Bank (same as above)
Length in inches
Diameter in inches
Width in inches
Height in inches
Dry Weight lbs. / kg.
Fuel Consumption city/highway (mpg & km/L)
Emission/s CO: g/km
CO2: g/km
NOx: g/km
Hydrocarbon: g/km
Particulate: g/km
Chief Engineer write here

The Mazda Z engine family is an evolution of the B family. It started with 2.0 L and 2.3 L variants found in the Mazda3, Mazda6 and Ford Ranger. For 2004, Ford dropped its own Zeta Zetec engines in favor of Mazda's, naming the resulting engine the Duratec 20 and Duratec 23.

Confusingly, Mazda also sells Ford's Sigma Zetec (which is unrelated to both the Zeta and Mazda Z family) as the MZI. The MZ-CD diesel is also unrelated to the rest of the Z family.

The Z5, ZL/ZM, and MZR are DOHC 16-valve water-cooled engines.


The 1.5 L (1489 cc, 92 hp) Z5-DE was used in the 1995-1998 Mazda Protegé, Mazda Lantis (Astina) and in Mazda Familia Neo (1994-1997). Bore and stroke were 75.3 mm and 83.6 mm. The Z5 was a totally new design and it became the basis for Mazda Z series of engines. The block is the same with the Mazda B series, particularly the B6 DOHC 2nd generation, except for the interal parts. It shares the same 2 piece oilpan, upper aluminum and lower stamped steel. JDM versions produce 97HP and some 110HP


The ZM engine is also known as the Z6, it is the evolution of the Z5 with round intake and exhaust ports.

The 1.5L (1498 cc, 130 hp) ZL-VE and 1.6 L (1598 cc, 105 hp) ZM-DE are closely related engines with an equal bore (78mm) and share some major parts. The ZL has a stroke of 78.4 mm whilst the ZM has 83.6 mm. The ZL makes more power, in its high end ZL-VE form, then its larger displacement version due to variable valve timing on the intake cam (s-vt).



Main article: Mazda MZR engine

The versatile MZR is Mazda's latest straight-4 engine. Development was assisted by Ford, who also sell the engine as the Duratec 23. The MZR family features a special long intake manifold for added torque, S-VT continuous variable valve timing, and a stainless steel 4:1 exhaust header.

The DISI turbocharged MZR was on the Ward's 10 Best Engines list for 2006 and 2007.


The MZI is a Ford Sigma family engine. The same engine was sold as the Zetec-SE in the Ford Fiesta and Focus.

  • 1.25 L (1242 cc) C2 (71.9x76.5 mm) - Mazda2, 75 hp (56 kW)
  • 1.4 L (1388 cc) C4 (76x76.5 mm) - Mazda2, 80 hp (60 kW)
  • 1.6 L (1596 cc) C6 (79x81.4 mm) - Mazda2, 100 hp (75 kW)


The MZ-CD is a Ford/PSA engine from the Duratorq/HDi families.
