Jeep Wrangler
Jeep
aka JK
Production 1941-present
Class Compact SUV/Offroader
Body Style 2-door, 4-seat Convertible Wagon
Length 162.9 in
Width 82.8 in
Height 70.9 in
Wheelbase 95.4 in
Weight 3782 lb (Manual)
3805 lb (Automatic)
Transmission 6-speed Manual
4-speed Automatic
Engine 3.8 litre OHV V6
Power 202 hp @ 5000 rpm
237 lb-ft. of torque @ 4000 rpm
Similar Land Rover Defender
Designer Chuck Mashigan (1983)

The Wrangler (also known as the JK, YJ and TJ, as explained below) is a compact SUV from Jeep, a division of DaimlerChrysler. It is a successor to the famous World War II GP vehicle by way of the 'Willy's' Jeep in the 1950s and later by the Jeep CJ series. The Wrangler YJ debuted in 1987, the TJ in 1997, and the JK in 2007.

The Wrangler is produced at Jeep's Toledo South Assembly plant in Toledo, Ohio.

Recent Changes[]

  • For 2011, the Wrangler receives major upgrades as well as a slight facelift. The biggest change concerns the much-improved interior, the new Wrangler gets a new steering wheel, instrument panel, reworked center stack, larger rear windows, lockable console, cushier armrests, new USB interface for MP3 player connection, Bluetooth streaming audio and improved cabin acoustics. Outside, new paint colors envelope the Wrangler in a choice of Bright White, Cosmos Blue, Deep Cherry Red, Detonator Yellow or Sahara Tan. The Sahara trim now also features a body-color removable hardtop. [1][2]
  • The Wrangler was completely redesigned for 2007. It has been enlarged in every dimension and now features a V6 engine in place of the AMC designed 4.0 liter inline-6. The Jeep Wrangler Unlimited has become its own model.

Styles and Major Options[]

The 2007 Wrangler is available in four trim levels: X, X-S, Sahara and Rubicon. Even the base X model is well equipped with both off-road and on-road features. In 2009, a special edition called Rocky Mountain Edition was made in spring 2009.

X Standard Features
Not available for the unlimited version. Not compatible with hardtop

  • 3.8 liter V6
  • 6-speed Manual Transmission
  • Convertible Soft Top
  • Full Framed Doors with Tinted Glass Windows
  • Full-Size Spare Tire
  • AM/FM CD/MP3 Stereo with 6 Speakers
  • 16" Steel Wheels
  • Shift-on-the-fly 4x4
  • Command-Trac(r) transfer case
  • Vinyl seats
  • Skid Plates
  • Tire Pressure Monitoring Warning Signal
  • Mini Console
  • "X" decal

Rocky Mountain Edition (2009 only)
A special edition of the base X trim was made for the Canadian market featuring:

  • 17" Tires and Aluminum Wheels
  • AM/FM 6-disc in-dash CD/MP3 Stereo
  • Body coloured fenders
  • Tubular Side Steps
  • Rocky Mountain decals

X-S Standard Features
In addition to or in place of X Standard Features

  • Cruise Control
  • Leather steering wheel
  • Compass and Thermometer
  • Cloth Seats
  • Fog Lights
  • Front and rear Tow hooks
  • 17" Tires and Aluminum Wheels
  • Front floor mats
  • Height-Adjustable Driver's Seat
  • Hardtop Wiring Kit
  • Full center console

Sahara Standard Features
In addition to or in place of X-S Standard Features

  • Tubular Side Steps
  • Air Conditioning
  • Underhood Insulation
  • Convertible Hard Top
  • Upgraded Instrument Panel
  • Stain-Resistant Cloth Upholstery
  • 368W Sound System with 7 Speakers and Subwoofer
  • Power Windows, Door Lock and Keyless Entry
  • 18" Aluminum Wheels
  • "Sahara" decals

Rubicon Standard Features
In addition to or in place of Sahara Standard Features

  • Locking Front and Rear Differentials
  • Electronic Front Sway Bar Disconnect
  • Rock-Track (r) transfer case
  • Convertible Soft Top
  • Rock Rails
  • 17" Machined Aluminum Wheels
  • 4:1 Low Range Transfer Case with 4.10 Axle Ratio
  • 32" Off-Road Tires
  • "Rubicon" decals

Major Options

  • 4 speed automatic transmission
  • Dual Top Group - Convertible Soft Top and 3-Piece FreedomTM Hardtop, Not Compatible with the X trim
  • Power Windows, Door Locks and Keyless Entry
  • Side Airbags
  • AM/FM 6-disc in-dash CD/MP3 Stereo
  • AM/FM CD/DVD Full-Screen Navigation Stereo with 20GB Hard Drive
  • Trailer Tow Group

Pricing[]

Add more fields as necessary.

MODEL Trims
Trim1 Trim2 Trim3 Trim4
MSRP
$Price1 $Price2 $Price3 $Price4
Invoice
$Price1 $Price2 $Price3 $Price4

Gas Mileage[]

Add more fields as necessary.

As seen on the FuelEconomy.gov website, the City/Highway MPG averages are as follows:

Trim
Trim1 Trim2 Trim3 Trim4
MPG
c/h c/h c/h c/h

Engine and Transmission[]

Specifications, details, graphs, pictures and other information regarding the powertrain is placed in this section.

Performance[]

Please make sure to write information of the vehicle's performance in a third-person point of view. This section should include information about the car's acceleration figures, handling, braking, etc.

If using information gathered from Road Test articles from a reputable automotive source, then please make sure to cite the quote.

Reliability[]

  • RECALL ALERT: Please note, this does not concern the 2dr Wrangler: Jeep recalling more than 47,000 2002-2003 Liberty because of loss of lubrication in their front ball joints due to salt and 2009 Commanders, Grand Cherokees, and Wrangler Unlimited models due to a possible reversed wiring on the driver's airbag controller which may inhibit the airbag's deployment. [1]

Safety[]

Photos[]

Colors[]

2011

  • Bright White Clearcoat
  • Cosmos Blue
  • Deep Cherry Red
  • Detonator Yellow
  • Sahara Tan
  • Jeep Green

Main Competitors[]

Hybrid Models[]

There are currently no hybrid models of the Jeep Wrangler.

Unique Attributes[]

  • 2 second generation Jeep Wranglers appeared in Jurassic Park as ranger vehicles.
  • Two Jeep Wrangler Unlimited vehicles have climbed 6646 km above sea level to the rim of the Ojos del Salado volcano in Chile - the highest altitude reached by a 4WD. It took 5 days for a team led by German adventurer Mattias Jeschke to drive from the base and the team experienced surfaces that included fissured rock cliffs, volcanic sand and glacial ice so smooth that walking up there requires spiked shoes. It even withstood "hurricane-strength" wind and temperatures of -30°C. The Wranglers used Goodyear MT/R tires.
  • Cheapest convertible car available in North America

Interior[]

Jp011013wrsmall

This section should include information on the interior's design, build quality, ergonomics, space (head and legroom, front and rear), features, stowage compartments and overall comfort and livability. Add pictures wherever applicable and keep information in a third-person point of view.


Resale Values[]

As with other convertibles Jeeps, the resale value should be good.

<MODEL> Year
Year X Year X-2 Year X-3 Year X-4
Resale Value
$ $ $ $

Criticisms[]


Fourth Generation: (2007–2018)[]

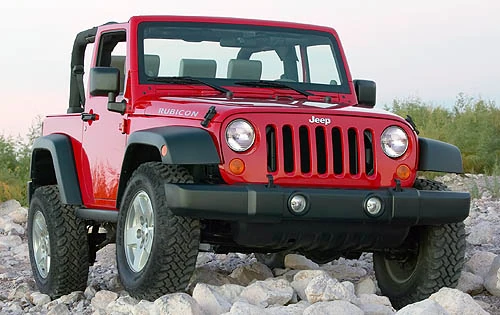

2007.jeep.wrangler

JK Jeep Wrangler

JK

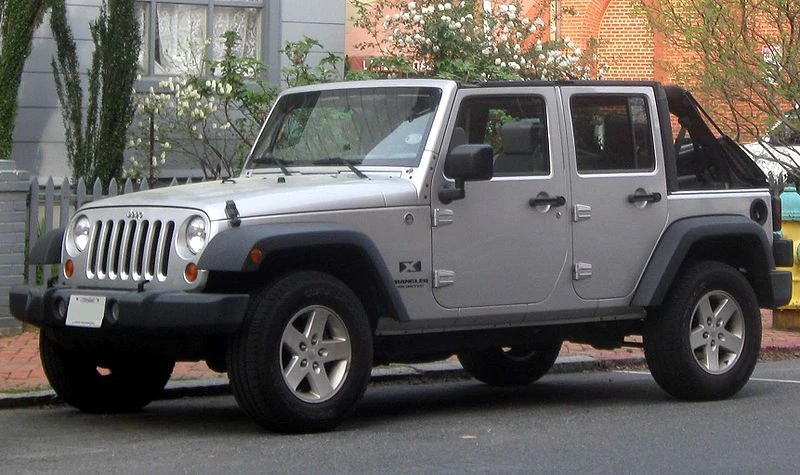

[[Jeep Wrangler Unlimited X|250px]]
Manufacturer {{{manufacturer}}}
Country {{{country}}}
Production 2007–present
Class {{{class}}}
Body style(s) {{{body style(s)}}}
Layout {{{layout}}}
Engine(s) {{{engine(s)}}}
Transmission(s) {{{transmission(s)}}}

The 2007 model year brought the complete redesign of the Jeep Wrangler, in both two and four-door models. The TJ platform was replaced by a new JK platform. This next-generation Wrangler was significantly larger than the existing model, with a 2 in longer wheelbase and 3.4 in wider track, though the two door model is actually 2.5 in shorter in the overall length than the TJ, allowing for a 44.3 degree approach angle and a 40.4 degree departure angle.[3] With a larger available standard tire size of 32 in, breakover angle is unchanged.

JK was introduced at the 2006 North American International Auto Show with past Chrysler group CEO Tom LaSorda driving one up some steps and through a plate glass window, just as Robert Lutz had done at the show in 1992 with the Jeep Grand Cherokee. The JK was first available for purchase with the 2007 model year.

The JK Wrangler is offered in two versions:

  • A short-wheelbase 2-door, in X, Sahara and Rubicon trim levels.
  • A long-wheelbase Unlimited 4-door, also in X, Sahara and Rubicon trim levels.

The Wrangler X is available with factory installed right-hand drive, targeted at US mail carriers. Rural mail boxes in the United States are serviced with the carrier behind the wheel. This may also be useful for carriers who wish to get out of their vehicle without the risk of getting hit by traffic. For the 2007 and 2008 model years, the short-wheelbase Wrangler was the right-hand drive Jeep. For the 2009 model year, the right-hand drive Wrangler will be replaced by the right-hand drive Wrangler Unlimited.

A 3.8 L EGT V6 with a displacement of 230.5 cubic inches (3778 cc) producing 202 hp and 237 lb-ft of torque is the base engine, replacing the venerable AMC 242 straight-6. The 2.8 L VM Motori turbodiesel straight-4 producing 177 hp and 302 lb-ft of torque used in the Liberty is offered as options outside of U.S, as it does not satisfy U.S. emission control standards for 2007.

A six-speed manual transmission is standard, with a four-speed automatic transmission offered as an option. The lower two levels have the Jeep Command-Trac NV241 part-time two-speed transfer case with an optional Trac-Loc limited-slip differential, while the Rubicon uses a Rock-Trac version of the NV241 with a 4:1 low range. Electronic locking front- and rear-axles called Tru-loc are also standard on Rubicon models. (A rear locking differential was optional on X and Sahara models for 2007, then only on select X models for 2008 and 2009. From 2010 onward, the locking differential is not available on any non-Rubicon Wrangler.)

Stability control is a new safety feature for the JK Wrangler. All versions offer off-road tuned Anti-lock braking system and traction control system with electronic limited slip differential. Standard on the Rubicon trim is a new electronic sway bar disconnect system.

The JK runs almost all vehicle functions other than steering under computer software control. Engine, transmission, and to some extent braking is computer controlled, as are lights and auxiliary systems. This is a first for the Wrangler. As of mid-2007, there have been three safety recalls for software fixes.[4]

A Sunrider convertible soft top is standard equipment. Also available on the JK model is an optional 3-piece modular hardtop. Although the doors can still be removed in traditional Wrangler fashion, power windows and remote power door locks will be offered for the first time in a Wrangler. Another first is an available navigation system. This is the first generation of the Jeep Wrangler to have a change in the tail lamps.

The 2009 model added standard Hill Start Assist (HSA) to prevent rollback on graded surfaces. Trailer Sway Control (TSC) also is available to monitor vehicle movement relative to the intended path and activates the Electronic Stability Program (ESP) if the trailer begins to sway outside set parameters. Additionally, ULEV II emissions replace LEV II emissions on manual transmission equipped vehicles.[5]

2010 facelift[]

'10 Jeep Wrangler Sport (MIAS '10)

2010 Jeep Wrangler Mopar accessories modifications

Jeep-Mountain-Unlimited

2010 Jeep Wrangler Unlimited Mountain

The 2010 model added a new easier to fold/open soft top, standard UConnect on models equipped with the MyGig radio, and new sun visors that offer more coverage than the old models, as well as integrated vanity mirrors.

JK trim levels[]

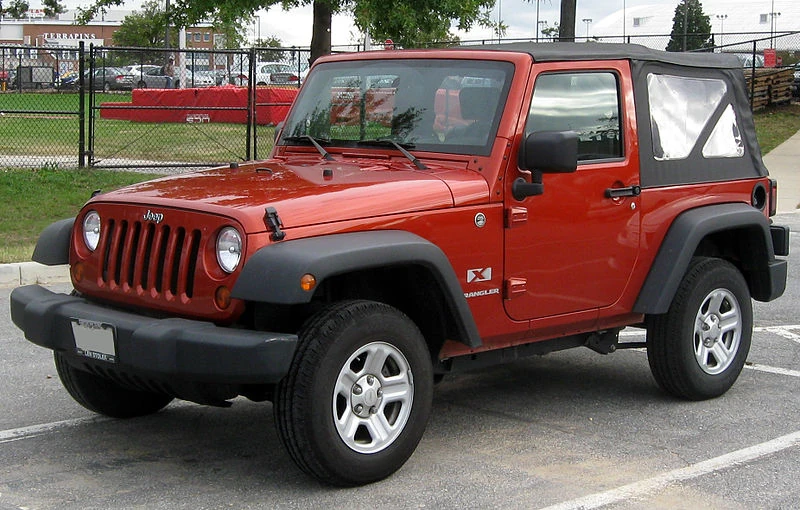

Jeep Wrangler X -- 10-06-2010

2007-2011 Jeep Wrangler X 2-door soft-top

The Standard Wranglers are available in six trim packages (including 2 special editions). The Unlimited Wranglers are available in four trim packages (including 1 special edition). Most package can be ordered with either hard or soft top, full or half doors("sport" and "rubicon" only).

The X model is available for 2 doors versions. It is the "bare bones" wrangler that can be customized to a buyers specifications adding such options as air conditioning and other accessories.It was renamed "Sport Base" in 2010

The Rocky Mountain Edition is a special edition of the barebone "X" model made in 2009 with 32" tires, black tubular sidestep, a 6-disc in-dash changer and visual enhancements such as body coloured fenders. It was only available in Canada.

The Islander Edition is a special edition of the barebone "Sport Base" model made in 2010 with 32" tires, Islander edition seats, rubber slush mats, black tubular sidestep and visual enhancements such as a blue accented leather steering wheel.

The Mountain Edition is a special edition of the barebone "Sport Base" model made in 2010 with 32" tires, black tubular sidestep, black tail light protectors and special edition seats, as well as visual enhancements like black grid and hood decals, a black fuel filter door and graphite dash enhancements. This edition was also available in 4 doors, based on the more equipped "Sport" trim instead of the "Sport Base" trim.

The 70th Anniversary Edition is a special package based on the Sahara model to commemorate the 70th model year of the wrangler. this package is available for the 2011 model year on both Wrangler and Wrangler Unlimited models. Features include: Black/Dark Olive (or Black) leather seats with perforated leather inserts and Chestnut accent stitching and piping, Leather steering wheel with Chestnut accents, Berber floor mats with Chestnut binding, Mopar brushed aluminum sill plates, Door armrest and center console in Dark Olive (or Black) with Chestnut accent, Unique 18-inch polished wheels, Automatic shift knob with satin chrome cap and bezel, Satin chrome HVAC rings, front doorpulls and grab handle, 70th Anniversary logo on radio screen, Unique cluster overlay and needles, and 70th Anniversary badges throughout.[6]

The X-S model features 32" tires, fog lights, cruise control, driver’s seat height adjuster, removable doors, and a fold-down windshield. It can be customized to a buyers specifications adding such options as air conditioning, power windows and locks soft or hard top, rear LSD or locker, electronic sway bar disconnect, and other accessories. It was renamed "Sport" in 2010.

The Sahara model is the "luxury" model offering accessories such as body coloured fenders, "Yes Essentials" seats (in late 2007-2008), power windows and locks and a 7 speaker infinity sound system with subwoofer, among others.

The Rubicon package is the dedicated "Offroad" package. Standard components of the Rubicon package include Front and rear generation II Dana 44 axles, front and rear electronic lockers, rock rails, Electronic sway bar disconnect, 32 spline rear axle with an 8.8 inch ring gear, 4:1 Rock-Trac transfer case, 4.10 axle gearing,"Yes Essentials" seats (2008), 7 speaker infinity sound system, removable doors, a fold-down windshield, and any other available option can be added.

JK Wrangler Unlimited[]

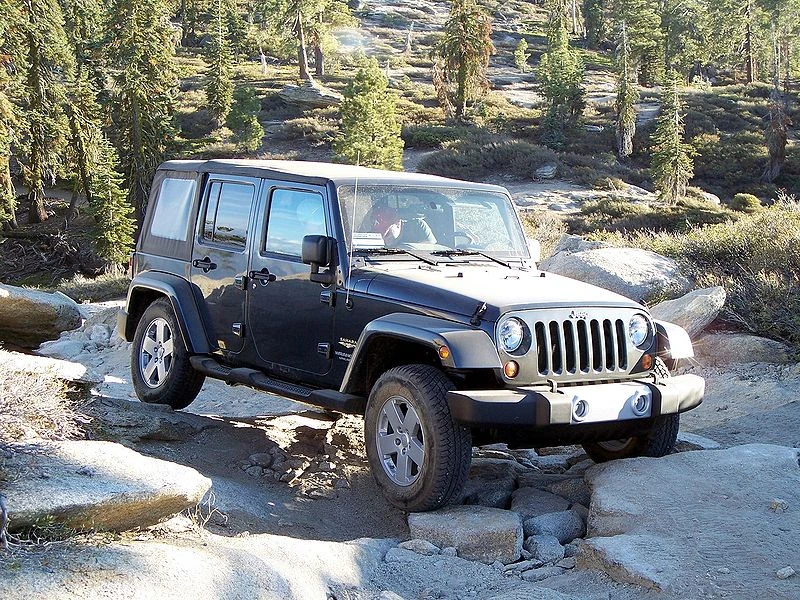

2008 Wrangler JK Unlimited Sahara

2008 Jeep Wrangler Unlimited Sahara

The JK series 2007 Wrangler Unlimited was unveiled at the New York Auto Show on April 12, 2006. It is stretched even more than the TJ model, with four doors (becoming the last-remaining 2-door SUV in North America to gain a four-door option) and 20.6 inches (523 mm) added to the JK Wrangler's 95.4-inch (2423 mm) wheelbase. It is priced near $21,000.

Unlimited has the same engine and transmission choices as a short-wheelbase JK. X and Sahara trims offer an option of 4x2 rear wheel drive in the U.S.A. It is the only four door convertible available in the U.S., since the Hummer H1 with optional rag-top is no longer sold as a civilian vehicle.

The Unlimited offers more options and equipment than any previous Wrangler model, including standard electronic stability program and optional seat-mounted side airbags, remote keyless entry, navigation system, and Sirius Satellite Radio.[7] The navigation and satellite systems are a part of the MyGig Entertainment system that also has a hard drive allowing for the storage of MP3 music files and pictures.[8]

On September 13, 2007, at the Defence Systems & Equipment International trade show, Chrysler LLC unveiled a Wrangler Unlimited version designed for military use dubbed the J8. The unarmored Jeep J8 is equipped with larger brakes, axles and suspension components than the civilian version and has a payload capacity of 1,339 kg (2,952 lb). The J8 also differs from the civilian model by utilizing heavy-duty rear leaf springs for carrying heavier payloads. The Jeep J8 is powered by a 2.8-liter four-cylinder turbo-diesel engine that produces 118 kW (158 hp) and 400 N·m (295 lbf·ft) of torque, providing towing capability of up to 3,500 kg (7,700 lb). The engine is mated to a five-speed automatic transmission. The J8 also features a unique air-intake system with special filtration and a hood-mounted snorkel that enables the J8 to wade in water up to 762 mm (30 in) deep and tackle sandstorm conditions for up to five hours. Available as a two-door with an extended pickup bed for personnel or equipment transport, or a four-door multipurpose vehicle, it may be produced with numerous vehicle-body and seating configurations in either right-hand- or left-hand-drive.[9] Targeted for use by the militaries in overseas markets, the J8 is not available in the United States because it will not meet U.S. emissions requirements. The J8 will be produced in Egypt.[10] The 2009 model added standard Hill Start Assist (HSA) to prevent rollback on graded surfaces. Trailer Sway Control (TSC) also is available to monitor vehicle movement relative to the intended path and activates the Electronic Stability Program (ESP) if the trailer begins to sway outside set parameters. Additionally, ULEV II emissions replace LEV II emissions on manual transmission equipped vehicles.[11]

The 2011 model added a new steering wheel, as well as a completely redesigned interior with higher quality materials, larger rear windows to increase rear visibility, and a new USB interface with Bluetooth audio streaming. For the first time ever, automatic temperature controls were also added to the Wrangler as an option. The redesign was intended to provide a more refined interior as well as directly addressing interior comfort in noise and temperature.

The 2012 model, as confirmed by Chrysler CEO Sergio Marchionne during the 2010 third-quarter sales announcement will receive a version of Chrysler's newest V-6 engine known as Pentastar.[12] There is a growing demand for now parent company, Fiat (Fiaty.pk), to introduce a diesel engine option for the Jeep Wrangler for better fuel economy and performance.

Sales[]

Calendar Year United States Canada Total
2007[13] 119,243 9,834 [14] 129,077
2008[15] 84,615 12,137 [14] 96,752
2009[16] 82,044
2010[17] 94,310 11,062 [18] 105,372

Previous Generations[]

Third generation (1997-2006)[]

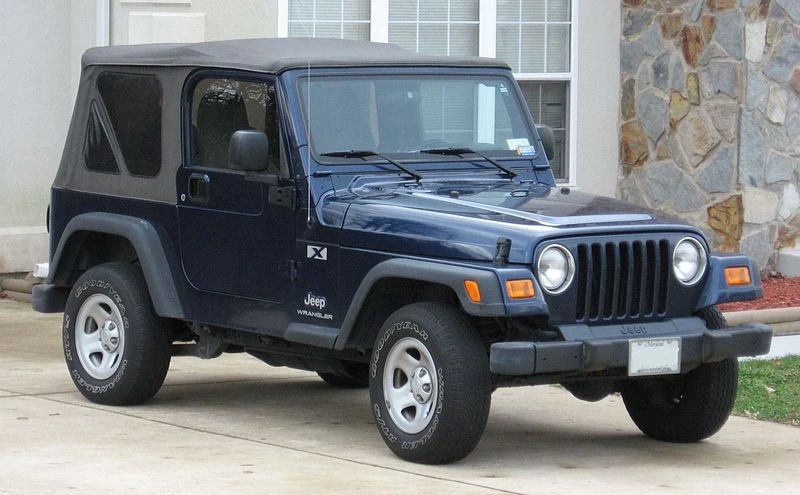

800px-Jeep Wrangler

TJ Jeep Wrangler X

TJ

The YJ gave way to the TJ for the 1997 model year (note that there was no 1996 model year; the 1997 TJ was released in Spring 1996). This updated Wrangler featured a coil-spring suspension (based on that of the Jeep Grand Cherokee) for better ride and handling than with leaf springs, and a return to the classic CJ's round headlamps, still applied to Wranglers to this day.

A right hand drive version of the TJ was available for export markets, and was also offered for sale to US rural route postal carriers. The version offered to US postal carriers was only available with an automatic transmission.

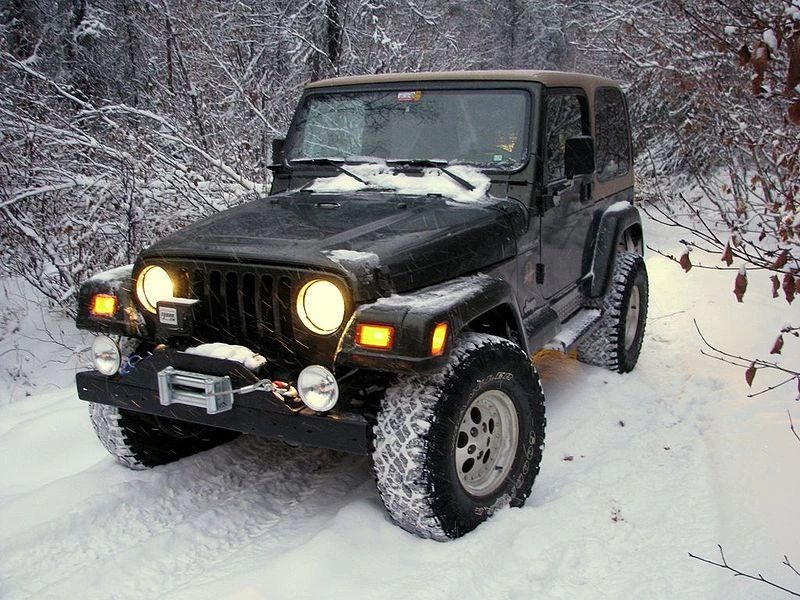

Jeep TJ in the snow

A modified 1998 TJ off-roading in Alaska

For model year 1999, the fuel tank became standard at 19 gal capacity. There were some changes that occurred between the 2002 and 2003 years that made certain parts difficult to directly swap back and forth, but also made it easy to identify certain years. From 1997 to 2002, for instance, the side door mirrors were black metal framed mirrors; and from 2003 to 2006 they were plastic molded mirrors. The fit of hard and soft tops is slightly different, and the fabric and colors available changed from 2002 to 2003. In 2003, the 3-speed automatic transmission was replaced with a 4-speed automatic with overdrive. It had the standard option of turning off overdrive with a dash switch if desired. The radio bezels went from a rectangle in 2002 to a rounded edged rectangle in 2003, so swapping these also required the console to either be swapped out or modified. The sound bar inside was changed to sound pods. The interior seats also changed design from 2002 to 2003, going from a rounder design to one with a distinct separation between back and headrest areas. The standard skid plate was also revised for 2003 to make room for the Rubicon's bigger NV241OR transfer case. The change from the 30/32RH to the 42RLE also gained an additional skid plate.

This version of the Wrangler is also notable for being the last production vehicle to use AMC-related parts. The AMC Straight-4 engine was retired after the 2002 model year, and both the AMC Straight-6 engine and the door handles (the latter of which first appeared on AMC vehicles in the late 1960s) were retired along with this generation in 2006. Like the YJ Wrangler, the TJ Wrangler used both the AMC passenger car door handles as well as the larger door handles off the AMC-built Jeep CJ for higher-end models.

TJ Wrangler Rubicon[]

Bright Silver Metallic Clearcoat 2006 Jeep Wrangler Rubicon

Bright Silver 2006 Jeep Wrangler Rubicon

Jeep Wrangler Rubicon

Deep Beryl Green Jeep Wrangler Rubicon

The Wrangler Rubicon (named for the famed Rubicon Trail in the Sierra Nevada Mountains) was introduced in summer of 2002 for model year 2003. It featured front and rear Dana 44 axles with built-in air-actuated locking differentials, 4:1 low-range NV241OR transfer case, 4.10:1 differential gears, diamond plate rocker panels, 16-inch alloy wheels, and Goodyear MTR P245/75-R16 tires. 2003 to 2004 featured a standard NV3550 five-speed manual transmission, which changed in 2005 to the NSG370, a Mercedes-sourced six-speed. The optional 42RLE four-speed automatic transmission was available from 2003 to 2006.

A limited run of 1,001 (perhaps as many as 1,050) Wrangler Rubicon "Tomb Raider" models were produced in 2003 to promote the Tomb Raider sequel, Lara Croft Tomb Raider: The Cradle of Life. Along with the standard Rubicon fare, it also included exterior features such as 16 inch Alcoa forged aluminum wheels, Tomb Raider badging, and Mopar accessories including a light bar, riveted fender flares, tubular grille guard, diamond-plated bumper guard, etc. Interior features included Dark Slate fabric seats with red accent stitching down the center, silver surround instrument panel bezel, red seat belts, and a Tomb Raider badge with serial number. To match the vehicle in the film, it was offered in only Bright Silver Metallic Clearcoat. Due to its classic styling combined with numerous unique accessories, the 2003 "Tomb Raider" Limited Edition Wrangler Rubicon has become one of the most highly collectible Jeeps of all-time.

TJ Wrangler Unlimited[]

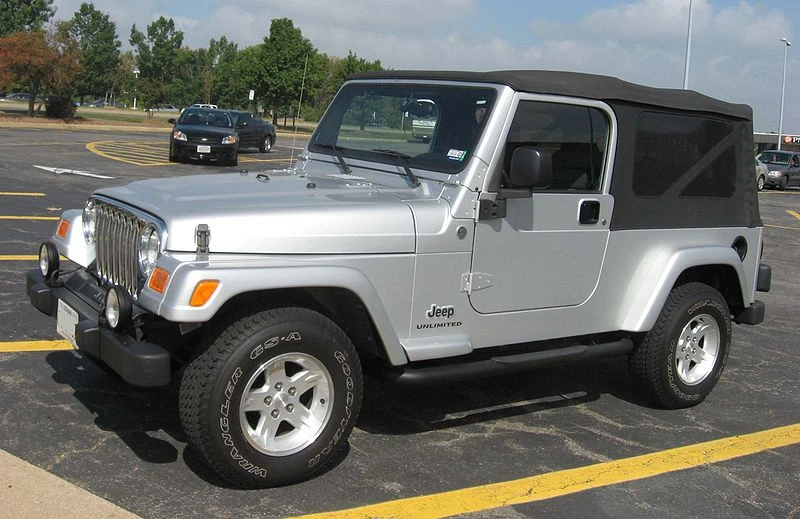

Jeep-Wrangler-Unlimited-TJ

Bright Silver Jeep Wrangler Unlimited

In 2004, Jeep introduced the Wrangler Unlimited (unofficially dubbed "LJ") with a 10 inch longer wheelbase (LWB), a Dana 44 rear axle with a 3:73 gear ratio and the Command-Trac 231 transfer case. In 2005, Jeep released the Rubicon Unlimited, which has the wheelbase of the Unlimited and the off-road features of the Rubicon such as front and rear Dana 44 axles with locking differentials, diamond plate rocker guards, an NVG241OR transfer case with a 4:1 low range, 245/75R16 Goodyear MT/R tires, a six-speed manual transmission and other comfort and convenience options not offered on other Wranglers. This model of the Jeep Wrangler had nearly double the towing capacity than its shorter wheelbase sibling due to the increased wheelbase size.

In 2005, Paramount released the movie Sahara which featured a Jeep Wrangler. As a way to build off the success of the movie, Jeep released a limited production “Sahara Edition” Unlimited Rubicon.[19] Only 1000 were produced and each one is numbered. All of them are visually identical, but some were offered in a manual and others an automatic. They are all Light Khaki Unlimited models. Trim differences over the standard Rubicon include a chrome grille, color-matched fender flares, a khaki hard top or soft top, as well as optional dual khaki tops, Graphite Moab wheels, a Sahara spare tire cover, upgraded two-tone premium seats, Sahara decals, taillight guards, and a numbered dash badge.

Engines[]

  • 1997-2002 2.5 L AMC 150 I-4, 120 hp (89 kW) at 5250 rpm and 139 lb⋅ft (179 N⋅m) at 2800 rpm
  • 1997-2006 4.0 L ERH AMC 242 I-6, 190 hp (142 kW) at 4600 rpm and 225 lb⋅ft (305 N⋅m) at 3000 rpm 1997-2001; 235 lb⋅ft (319 N⋅m) at 3200 rpm 2001-2006
  • 2003-2006 2.4 L EDZ PowerTech I-4, 150 hp (112 kW) at 5400 rpm and 165 lb⋅ft (224 N⋅m) at 4000 rpm

Colors[]

1997[]

All Colors:

  • Black Clearcoat
  • Bright Jade Satin Glow
  • Citron Pearlcoat
  • Dark Blue Pearlcoat
  • Emerald Green Pearlcoat
  • Flame Red Clearcoat
  • Gunmetal Pearlcoat
  • Lapis Blue Clearcoat
  • Moss Green Pearlcoat
  • Stone White Clearcoat
1998[]
Added:[]
  • Chili Pepper Red Pearlcoat
  • Deep Amethyst Pearlcoat
Removed:[]
  • Citron Pearlcoat
  • Dark Blue Pearlcoat
1999[]
Added:[]
  • Desert Sand Pearlcoat
  • Intense Blue Pearlcoat
  • Forest Green Pearlcoat
  • Medium Fern Green Pearlcoat
Removed:[]
  • Bright Jade Satin Glow
  • Emerald Green Pearlcoat
  • Lapis Blue Clearcoat
  • Moss Green Pearlcoat
2000[]
Added:[]
  • Patriot Blue Pearlcoat
  • Silverstone Metallic Clearcoat
  • Solar Yellow Clearcoat
Removed:[]
  • Chili Pepper Red Pearlcoat
  • Deep Amethyst Pearlcoat
  • Gunmetal Pearlcoat
  • Intense Blue Pearlcoat
2001[]
Added:[]
  • Amber Fire Pearlcoat
  • Sienna Pearlcoat
  • Steel Blue Pearlcoat
Removed:[]
  • Desert Sand Pearlcoat
  • Medium Fern Green Pearlcoat
2002[]
Added:[]
  • Bright Silver Metallic Clearcoat (Apex Special Edition only)
  • Shale Green Metallic Clearcoat
Removed:[]
  • Forest Green Pearlcoat
2003[]
Added:[]

...

Removed:[]

...

Second generation (1987–1996)[]

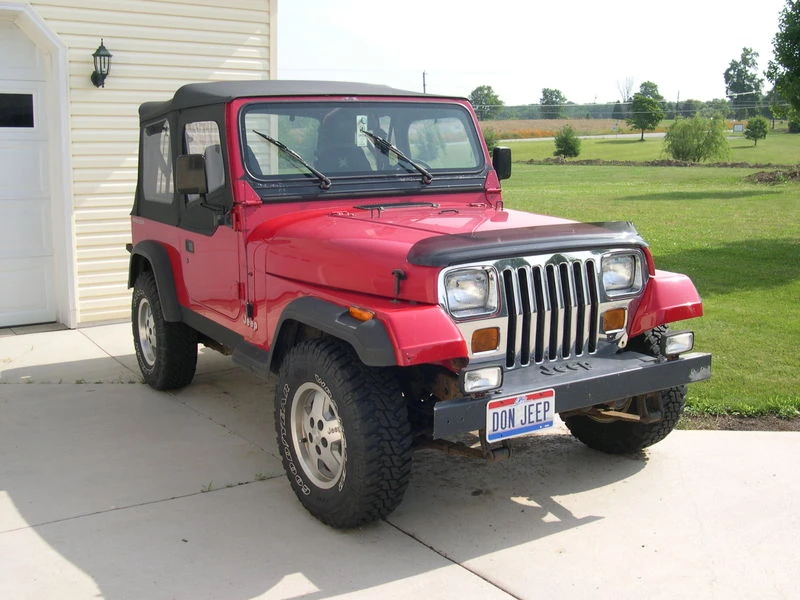

800px-1992 Jeep YJ

1992 Jeep YJ

YJ

YJ
[[|250px]]
Manufacturer {{{manufacturer}}}
Country {{{country}}}
Production 1987–1996
1989-1997 (IR)
Class {{{class}}}
Body style(s) {{{body style(s)}}}
Layout {{{layout}}}
Engine(s) {{{engine(s)}}}
Transmission(s) {{{transmission(s)}}}

The Jeep YJ, sold as the Wrangler, replaced the much-loved but slower-selling Jeep CJ in 1987 and was built in Brampton, Ontario, Canada until the plant closed on April 23, 1992. Production was then moved to Toledo, Ohio using the same plant that produced the Willys Jeeps back in WWII. The American Motors Corporation (AMC) had designed the new jeep to be more comfortable on-road in an attempt to attract more daily drivers.[20] It was a new design with a wider track, slightly less ground clearance, and more comfort. The YJ also had a leaf spring suspension similar to that of the CJ, however, the springs were wider, and the YJs sported trackbars and swaybars for improved handling. Despite the new grill, the body is very similar to the CJ7's, and it is interchangeable with some minor modifications. The YJ also was given a larger windshield over the CJ. The YJs are easily identifiable due to the rectangular headlights, disliked by some Jeep aficionados, and the fact that the wiper blades rest on the windshield giving this version a distinctive look. The blades rested on the windshield due to the now wider arc of the blades to clean the now larger windshield. These two changes were later removed when the TJ changes came about in 1996. 632,231 YJs were built through model year 1995, though YJs were still produced into mid '96 bringing the total production number to 685,071 units.

The YJ used a 2.5 L AMC 150 I4 or optional 4.2 L AMC 258 I6 until 1991. That year, a fuel injected 180 hp (134 kW) 4.0 L AMC 242 variant replaced the 112 hp (84 kW) 4.2 L 258 CID straight-6. The NP207 transfer case was used only in 1987 and replaced by the NP231

The roll cage was extended in 1992 to allow for rear shoulder belts, and anti-lock brakes were added as an option the next year. An automatic transmission option for 4-cylinder Wranglers came in 1994 along with a center high-mounted stop lamp.

In 1994, the slave cylinder on manual transmissions was moved outside of the transmission's bellhousing to allow for easier replacement, and in 1995 the Dana 30 got larger U-joints were used [front axle U-joints (297x) and rear pinion U-joint (1330)]. For the 1992 model year, the YJ switched over to an electronic speedometer outmoding the cable speedos on older YJs. 1995 was the only year to have a fully galvanized frame and body.

There were no 1996 model year Jeep Wranglers.[21] YJs produced in early 1996 were sold as 1995 model years, but featured a few new parts not seen on any earlier YJ. This included: the new TJ bump stops on the hood (rubber boots vs the traditional U-bars), reinforced tailgate hinges, and it has been said that some even had rear TJ bumpers. Some also got the newly tuned I6 that was designed to run quieter in preparation for the TJ.

Top options for YJ were the same as those offered on TJ. A soft top with "half doors", featuring soft plastic zipper windows came standard (windows could be removed completely from these doors). Full frames doors with conventional glass windows were optional on soft-top models. Hard tops with rear wiper and defroster were optional, but came standard with full framed doors. YJ featured large mirrors with manually adjustable arms on half door models, while full framed doors received smaller adjustable mirrors with fixed arms (which were mounted further away from the door corner, compared to the larger style mirrors). Depending on year and interior color, Jeeps could be had with the top colors in black, white, tan and gray. Roll bar padding normally matched top color, with the exception of white tops.

YJ Wrangler Islander[]

From 1988 until 1993, Jeep produced an options package known as the "Islander". Several colors were offered, such as Bright Red, Sunset Yellow, Teal, and White, and both engines were offered. Features of the package are as follows:

  • Body color wheel flares and side steps
  • Sunset graphics on lower body and hood
  • Islander logo on front fenders and spare tire cover
  • 20 gallon fuel tank
  • Gray interior and highback leather seats
  • Optional 5-spoke Alloy Wheels
  • Floor carpeting
  • Center console with cupholders
  • It had an option of full or half doors.

YJ Wrangler Renegade[]

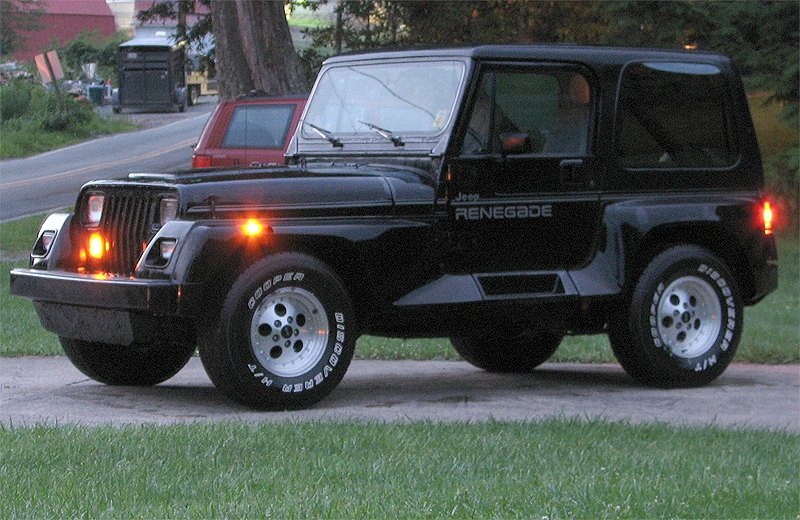

91 Jeep Renegade

1991 Jeep Renegade

From 1991 until 1994, Jeep produced an options package on the YJ Wrangler listed as the "Renegade Decor Group". Initially, all Renegades were White, Black or Red. In 1992, Blue was added, in 1993, Bronze. The Renegade Decor Group was a $4,266.00 option over a base Wrangler in 1991 and included special alloy wheels, exclusive body flares, along with many other features.

Contents of the Renegade Decor Package

  • 4.0 Liter (242 CID) I-6 Engine
  • 29x9.5R15 LT OWL Wrangler A/T Tires
  • 5-hole aluminum wheels, 8 inches wide
  • Full size spare tire
  • Highback seats with Trailcloth Fabric
  • Off-Road Gas Shocks
  • Power steering
  • Fog lamps (integrated into the front fenders)
  • Leather wrapped steering wheel
  • Renegade striping (door letters)
  • Floor carpeting (full width, and on insides of body tub)
  • Floor mats, front
  • Extra capacity fuel tank (20 US gal.)
  • Color keyed fender flares with integrated bodyside steps
  • Front and rear bumperettes (plastic)
  • Center console with cup holders
  • Courtesy and engine compartment lights
  • Interval wipers
  • Glove box lock

A hardtop was a $923.00 option and came with a mandatory rear window defroster at a $164.00 premium. Although soft-top models came standard with "half doors", full framed doors with glass windows were an option. Renegades typically had the tilt steering wheel ($130.00) and an AM/FM/cassette stereo radio ($264.00). A column shift automatic was also an available option, but it was not popular. While a base Wrangler with the inline-6 went for $12,356.00, the Renegade package pushed that price up to $18,588.00 in 1991.

These vehicles were sent as optioned Wranglers to Auto Style Cars in Detroit, where the Renegade Decor Package was installed, then shipped back to Jeep for delivery to dealers. Renegades all have a small sticker on the driver's side door, right above the latch denoting the visit to ASC.

At the price premium over a standard Wrangler, sales were fairly limited, so finding one today is a semi-rare occurrence. The price, plus what hardcore Jeepers felt were "funny looking plastic fenders" limited the sales. Although having nearly identical off-road capabilities, these Jeep were typically used as "beach cruisers" because of their price and rarity, as well as because their over sized flares and body cladding were not necessarily designed for the abuse that tree branches and over-sized tires can often cause.

Trim levels[]

North American YJ/Wrangler were available in the following standard trims.

  • Base: also referred to as "S" & "SE" at different points in the model run; first few years the back seat and rear bumperettes were optional, some years the 6cyl engine was an option, other years only the 4cyl was available in the "Base" model.
  • Laredo" Chrome grille, bumpers, and trim, hard top and hard full doors, tinted windows, faux leather interior, body color fender flares and alloy wheels)
  • Islander: which included "Sunset" Islander graphics and body colored wheel flares
  • Sport: which featured "sport" graphics and, beginning in 1991, a 4.0 L 242 CID inline-6 cylinder engine
  • Sahara: which came standard with most available options, including body color fender flares and alloy wheels, also included with the Sahara edition are special green trail-cloth seats with storage pockets, interior door panels with pockets, front bumper mounted fog lamps, and plastic ends on the front bumper)
  • Renegade: which ran until 1994, and featured a similar option package as Sahara, but added premium wheels, deluxe interior group as well as oversized "Renegade" wheel flares and body cladding with integrated fog/off road lamps.
  • Rio Grande (Available in champagne gold, moss green and white and, (rarely seen) Bright Mango; with a Pueblo themed interior trim package. This trim was only available in 1995, and was added to spice up the base 4-cylinder Wrangler 'S' models

First Generation/Origins (1941 - 1986)[]

CJ series

CJ-7

CJ-5

CJ-3b

CJ-3a

CJ-2a

The Wrangler traces its origins to the Willy's Jeep of World War II fame.

Worldwide[]

A diesel Wrangler is available for the international market

Design quirks and oddities[]

The ignitions of many of the YJ model jeeps could be turned without use of a key. There is an ignition locking lever, but you can switch it off to easily turn the ignition without a key.

Recognition[]

The Jeep Wrangler received the 2009 Best Resale Value Award from Kelley Blue Book (KBB) in the Sport Utility Vehicle category. The Wrangler also holds the "Models to Best Hold Its Value" recognition from Kelley Blue Book for 1999, 1998, and 2003.[26]

The 2008 edition of Forbes Autos lists the four-wheel-drive convertible Jeep Wrangler at number four among the top ten vehicles with the highest resale value.[27]

In May 2009, Business Week magazine named the Wrangler "One of the Most Iconic Cars of the Last 20 Years."

Electric Wrangler[]

In September 2008, Chrysler Vice Chairman Tom LaSorda unveiled a range-extended electric 4-door Wrangler along with similarly engineered Town and Country minivan and a purely electric sports car. The Wrangler would have a 40-mile (64 km) range before a gas engine starts and begins supplying additional electricity.[29] However, in November 2009 Fiat SpA disbanded Chrysler's ENVI electric car division and dropped these models from future product plans.

See also[]

Jeep-wrangler-ni-1125x243
JEEP

The Fiat Group


Abarth | Alfa Romeo | Autobianchi | Fiat | Lancia | Innocenti | Maserati | Iveco | Chrysler | Dodge | Ram | Jeep


Current

SUVs/Cars: Wrangler · Wrangler Unlimited · Grand Cherokee · Cherokee · Compass · Renegade

Historic

SUVs/Trucks: CJ Series · CJ-2A · CJ-3A · CJ-3B · CJ-7/8 · Wrangler YJ · Wrangler TJ · CJ-10 · VJ · C101 · C104 · Wagoneer XJ · Wagoneer SJ · Grand Wagoneer · Gladiator · J-Series · Comanche · Forward Control · Cherokee SJ-XJ · Commander · DJ · DJ Postal · Jeepster Commando · FJ · Willys Jeep Truck · Willys Jeep Wagon · Rural (Brazil) · Honcho · Grand Cherokee SRT8 · Liberty · Patriot

Military

J8 · Kaiser M-715 · Willys MB · Willys MA · M-38 · M-38A1 · M-170 · M676 · M677 · M678 · M679 · M606 · M-38A1C · M38A1D · M151 MUTT · Jeep trailer

One-off

C101 Commando Hurst Edition

Prototype

Bantam Pilot · Bantam BRC-60 · Willys Quad · Ford Pygmy · Budd Ford · Ford GPA · Willys MLW-1 · Willys MLW-2 · X-98 · BC Bobcat · CJ-V35 · CJ-4M · CJ-4MA

Concept

Gladiator · Hurricane · JT · Rescue · Trailhawk · Wrangler Ultimate · Renegade Hybrid Concept · Z5 Concept · Patriot Back Country Concept · EV Prototype · Wrangler Lower Forty Concept · Wrangler Overland Concept · Wrangler J7 Concept · Patriot Extreme Concept · Wrangler Trail Boss Concept · NuKizer 715 Concept · The General Concept · Mopar ImMortal Concept · Mopar XJ Stroker Concept · XJ001 Concept · DJ-3A Pickup · XJ001 · XJ002 · Cowboy · Jeep II · Cherokee Targa · Comanche Thunderchief · Rubicon Wrangler · JJ · Freedom · Wagoneer 2000 · Concept 1 · Ecco · Cherokee Casablanca · Wrangler Ultimate Rescue · Fender Jeep Wrangler · Dakar · Icon · Journey · Jeepster Concept · Cherokee Total Exposure · Varsity · Commander Concept · Jeep Willys · Jeep Willys 2 · Wrangler Tabasco · Wrangler Patriot · Wrangler Mountain Biker · Grand Cherokee Concierge · Treo · Liberator CRD · Aggressor · Renegade · Grand Cherokee Kirkwood Edition · Compass Concept · Grand Cherokee Bluetec · Sportif · Harlequin · Station Wagon Concept · FC Concept · Wrangler Scrambler · Unlimited Rubicon CRD · Rubicon King · SoBe Jeep Wrangler · Wrangler Gamer · Wrangler Commando · Burton Snowboards Wrangler · American Racing Jeep Wrangler · Jeepster 2 · DJ-3B · Grand Cherokee Colorado


SRT · Mopar · HEMI · Jeep four wheel drive systems · List of Jeep axles · List of Jeep transfer cases · Jeep Transmisson Info · List of Jeep engines · AMC and Jeep transmissions · Toledo Complex · Belvidere Assembly Plant · Jeep portal


Unknown Corporate website A division of Fiat S.p.A


References[]

  1. Officially Official: Updated 2011 Jeep Wrangler now in production
  2. Jeep Wrangler Doesn’t Fix What’s Not Broken
  3. 2007-2010 wrangler approach and departure angles. "jeep.com". retrieved 2011-02-28.
  4. "Jeep JK Wrangler Resource " Recalls". Project-JK.com. http://project-jk.com/jeep-jk/jeep-jk-tsb-recalls/recalls/. Retrieved 2009-08-24.
  5. "2009 Jeep Wrangler". jeephorizons com. http://www.jeephorizons.com/news/09_wrangler_090108.html. Retrieved September 3, 2008.
  6. 2011 70th anniversary edition. jeep.com. Retrieved 2011-02-28
  7. "Jeep Unveils Stretched 2007 Wrangler Unlimited with $21,000 Price Tag". Edmunds com. Archived from the original on 2006-04-13. http://web.archive.org/web/20060413164405/http://www.edmunds.com/insideline/do/News/articleId=109966. Retrieved April 12, 2006.
  8. "My Chrysler: MyGig- How MyGig Works". Chrysler LLC. http://www.chrysler.com/en/owners/mygig/. Retrieved June 9, 2008.
  9. "New Military Version of Jeep Wrangler Unlimited". jeephorizons com. http://www.jeephorizons.com/news/j8_091307.html. Retrieved September 16, 2007.
  10. Valdes-Dapena, Peter (September 2007). "Jeep gets back in uniform: Back in the Army". CNN.com. http://money.cnn.com/galleries/2007/autos/0709/gallery.jeep_wrangler_history. Retrieved 2010-12-28.
  11. "2009 Jeep Wrangler Unlimited". jeephorizons com. http://www.jeephorizons.com/news/09_unlimited_090108.html. Retrieved September 3, 2008.
  12. Colin Bird (November 9, 2010). "Chrysler Confirms New V-6 For Jeep Wrangler, More Info on Compact Dodge". Cars.com. http://blogs.cars.com/kickingtires/2010/11/chrysler-confirms-new-v-6-for-jeep-wrangler-more-info-on-compact-dodge.html. Retrieved 2010-11-09.
  13. "Total Chrysler LLC December 2007 Sales Up 1 Percent on the Strength of Retail". CheersandGears.com. 2008-01-03. http://www.cheersandgears.com/topic/55253-total-chrysler-llc-december-2007-sales-up-1-percent-on-the-strength-of-retail/. Retrieved 2009-01-05.
  14. 14.0 14.1 "Chrysler Canada Announces 2008 Calendar Year Sales Results". media.chrysler.com. http://media.chrysler.com/newsrelease.do?id=8424. Retrieved 2011-02-05.
  15. "December 2008 Sales: Chrysler LLC". CheersandGears.com. 2009-01-05. http://www.cheersandgears.com/topic/27526-december-2008-sales-chrysler-llc/. Retrieved 2009-01-05.
  16. "Chrysler Group LLC December 2009 Sales". CheersandGears.com. 2010-01-05. http://www.cheersandgears.com/topic/50556-chrysler-group-llc-december-2009/. Retrieved 2010-01-05.
  17. "Chrysler Group LLC December 2010 Sales". CheersandGears.com. 2011-01-04. http://www.cheersandgears.com/topic/74955-december-2010-sales-chrysler/. Retrieved 2011-01-04.
  18. "Chrysler Canada Celebrates 26 Per Cent Sales Growth in 2010". http://media.chrysler.com/newsrelease.do. http://media.chrysler.com/newsrelease.do?id=10416. Retrieved 2011-02-05.
  19. 2005 Rubicon Sahara Edition. RubiconSahara.com. Retrieved 2010-03-28.
  20. "Jeep Wrangler: The Real Thing or Compromise?". 4-the-love-of-jeeps.com. 1995-03-21. http://www.4-the-love-of-jeeps.com/jeep-wrangler.html. Retrieved 2010-09-19.
  21. Foster, Patrick R. (2004). The Story of Jeep. Krause Publications. p. 231. http://books.google.com/books?id=D05p17q4cSYC&pg=PA231&dq=1996+Jeep+Wrangler&hl=en. Retrieved 2010-11-11. "One highly irregular thing about the 1996 model year was that the company didn't offer a 1996 Wrangler."

External links[]

News and References

Enthusiast Sites and Discussion Forums

Smallwikipedialogo.png This page uses some content from Wikipedia. The original article was at Jeep Wrangler. The list of authors can be seen in the page history. As with Autopedia, the text of Wikipedia is available under the GNU Free Documentation License.


Advertisement
