Jeep Forward Control

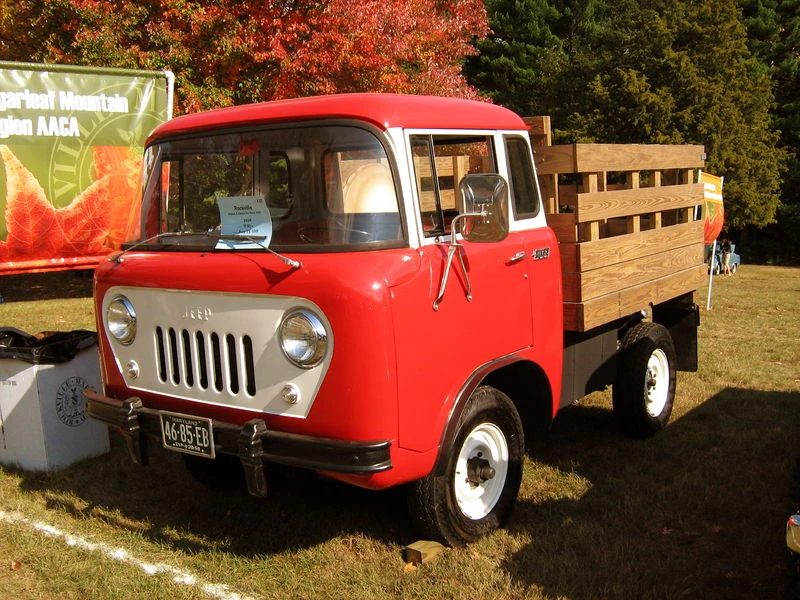

[[1958 Jeep model FC-150 with stake bed 1958 Jeep FC-150 with stake bed|250px]]
Manufacturer Jeep
Country {{{country}}}
Production 1956–1967
Class
Body style(s) {{{body style(s)}}}
Layout FR layout
Engine(s) {{{engine(s)}}}
Transmission(s) {{{transmission(s)}}}

The Jeep Forward Control is a truck that was produced by Willys and then Kaiser Jeep from 1956 to 1965. It was also assembled in other international markets. The layout featured a cab over (forward control) design.

Design[]

Jeep FC
Willyspickup

Willys produced utility vehicles that remained almost unchanged since 1947. As the marketplace grew more competitive in the 1950s, management developed a new range of modern cab and body trucks. Designer Brooks Stevens used styling cues from full-size cab-over-engine trucks. Engineering was based on existing CJ-5. Power came from the Hurricane F-head and L-head 4-cylinder engines.

The Forward Control models were primarily marketed as work vehicles for corporate, municipal, military, as well as civilian use. Regular pickup box beds were standard, but customers were offered a large number of "Jeep approved" specialized bodies from outside suppliers. These ranged from simple flatbeds to complete tow trucks, dump trucks, and fire trucks.

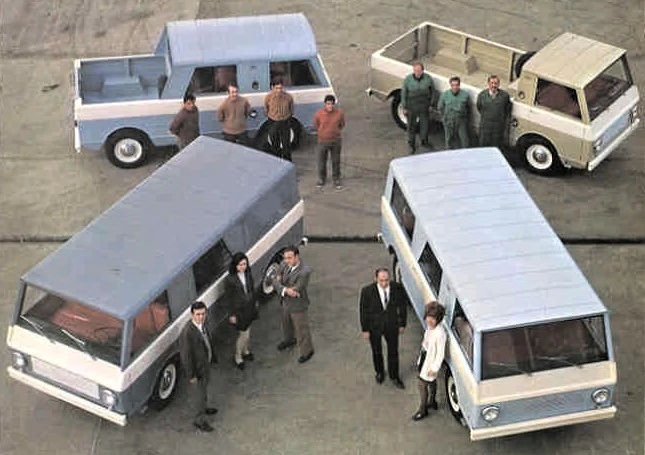

Proposals included a "Forward Control Commuter" design that may have been among the earliest minivan-type vehicles. Three operational concept cars were built by Reutter in Stuttgart, West Germany. Brooks Stevens was also involved in the transformation of this truck platform into a passenger vehicle.

FC-150[]

Introduced in 1956, FC-150 models used the frame and wheelbase of the CJ-5 81 in (210 cm) with a 78 in (200 cm) bed. In 1958, the FC-150 received a new, wider chassis. Its track was widened from 48 in (120 cm) to 57 in (140 cm).

FC-170

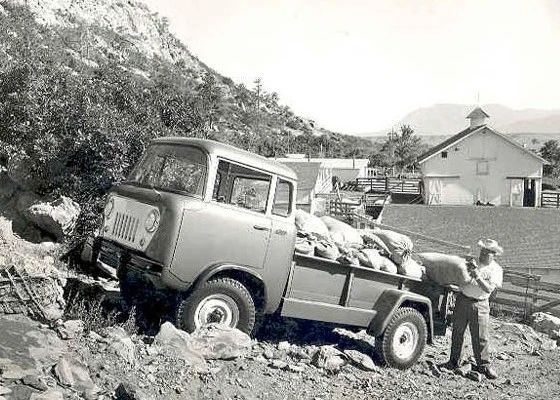

JeepFC-170

1957 Jeep model FC-170 with pickup cargo bed

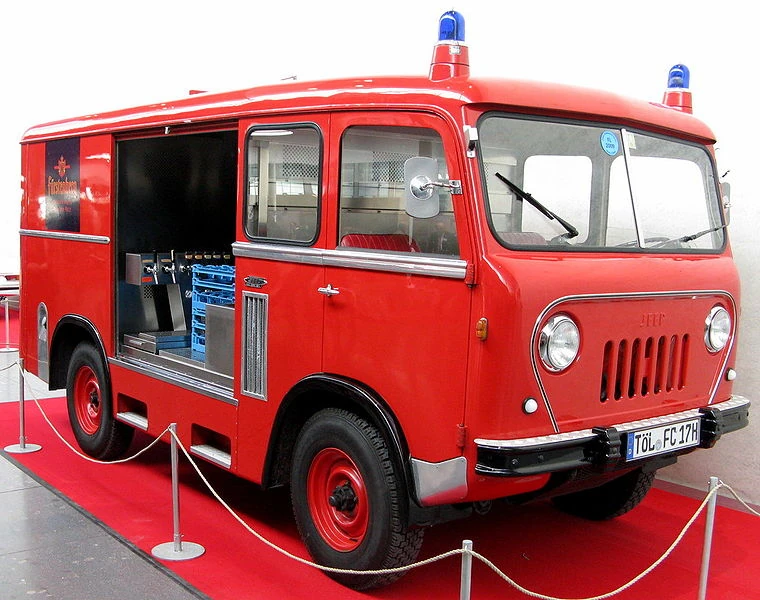

MHV Jeep Fire Engine 01

Fire engine van body Forward Control

DSC02363 small

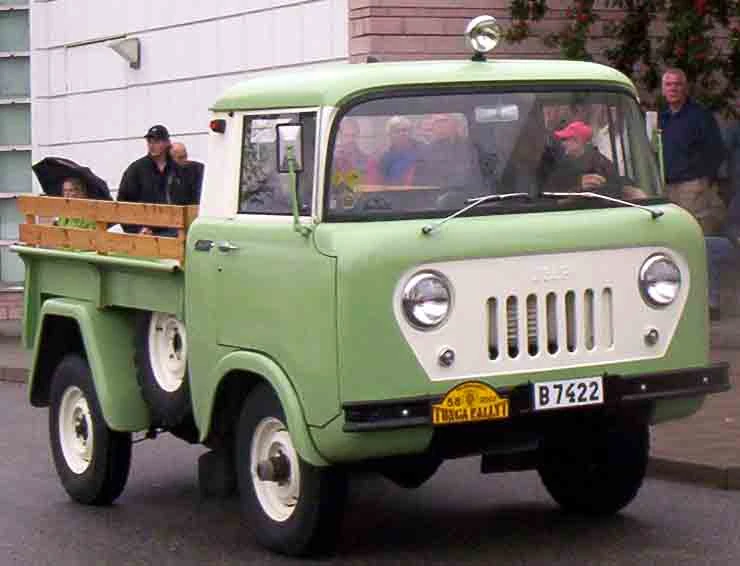

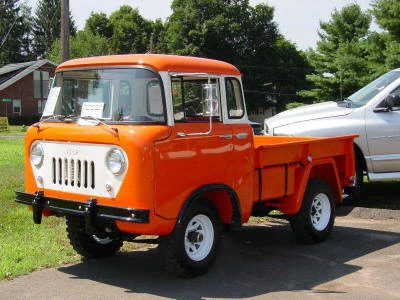

Willys FC150 Truck 1963

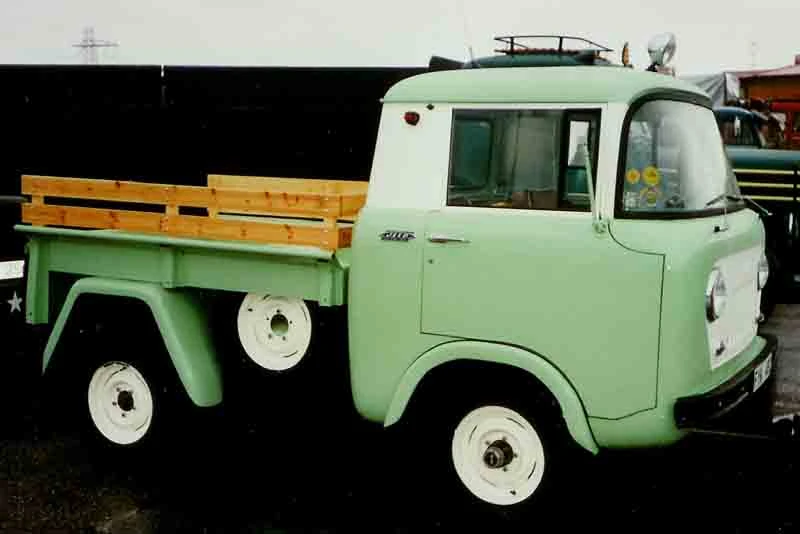

Willys FC170 Truck 1957

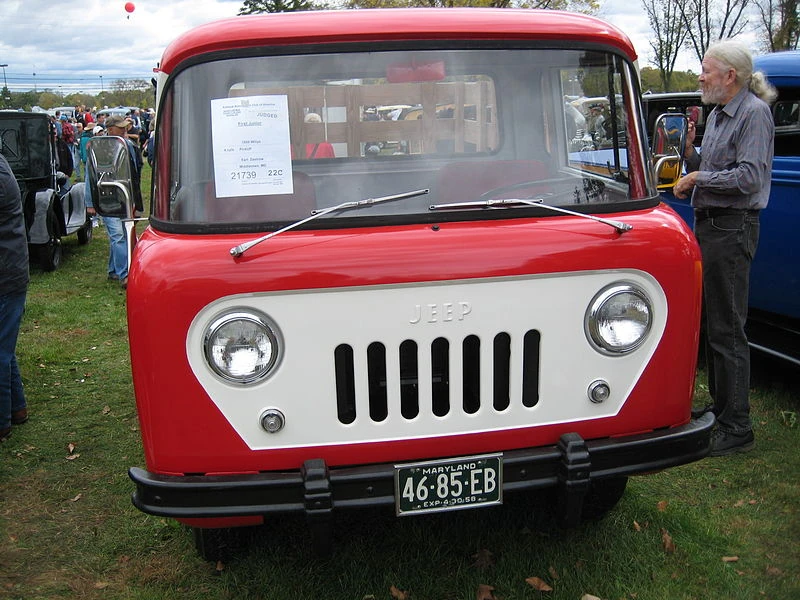

Jeep FC, Eastern Region Fall Meet

FC-170[]

Introduced in 1957, FC-170 models had a 103 in (260 cm) wheelbase with a 108 in (270 cm) bed. This was achieved by the forward-control layout.

FC-170 DRW[]

Introduced in 1957, FC-170 models had a 103 in (260 cm) wheelbase with a 108 in (270 cm) bed. This was achieved by the forward-control layout.

Production[]

The FC Jeeps were exhibited to Jeep dealers in a closed-circuit telecast on November 29, 1956, and were on display for the public at the December 1956 National Automobile Show in New York City. The FC-150 went on sale at dealer showrooms on December 12, 1956. The initial response to the four-wheel drive FC Jeeps was favorable. Their best sales year came in 1957, when 9,738 trucks were sold. After the introduction of the FC-170 in 1957, FC-150 sales dropped to 1,546 units in 1959, before rebounding to 4,925 in 1960. Neither model became the big seller that Willys had hoped. Total production in nine years was just over 30,000 units. The FC line was discontinued in 1964.[1]

Military variations[]

Aside from Forward Control Jeeps being built for civilian use there were also four models manufactured for the military.

  • M676 - Basically a civilian FC with minor modifications
  • M677 - A four door crew cab with a canopy over the bed
  • M678 - An FC with a van body
  • M679 - An M678 refitted as an ambulance

Non-USA models[]

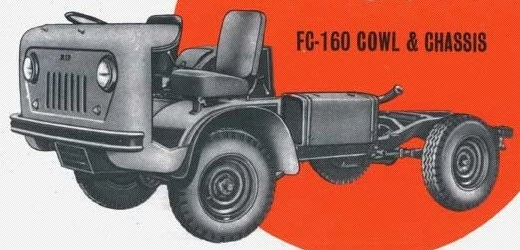

Jeep FC-160 CowlAndChassis

c.1970s domestic market in India cowl & chassis FC-160

Numerous versions of FC models (most not available in the domestic market) were manufactured in many other nations under collaboration agreements with successive owners of Jeep: Willys-Overland, Kaiser Jeep, and American Motors (AMC).

India[]

Mahindra & Mahindra Limited in Bombay (Mumbai), India began its vehicle business in 1947 by assembling Complete knock down (CKD) Jeeps.[2] It started FC-150 production in India in 1965 and later expanded the model range for the domestic market to include the FC-170, as well as its own intermediate sized FC-160.

The FC-160 (and later FJ-160) uses a 93 in wheelbase. The pick-up box was by Mahindra and other bodies were available. The "cowl and chassis only" FC-160 model was popular during the 1970 s for conversion into mini-buses, ambulances, and other vehicles. Most have the basic front face of the FC. Manufacture of the Mahindra FC-160 pickup truck ended in the summer of 1999.

The FC-260 Diesel light truck was introduced in 1975. Currently, Mahindra's FJ-460 (introduced in 1983) and FJ-470 van or mini-bus vehicles retain the grille arrangement of the original Forward Control. These vehicles can accommodate from 11 to 15 passengers plus the driver.[3]

Spain[]

Spain-JeepSV

The Jeep "SV" line of Forward Control vans made in Spain

In the 1960 s, Kaiser-Willys licensed VIASA (Vehículos Industriales y Agrícolas, S.A.) to build Jeeps in Spain. During the late-1970 s, VIASA was absorbed by Ebro trucks (a division of Motor Iberica). The "SV" line of commercial trucks were built using a Jeep chassis, just like the FC models in the USA. The unique Iberian models included the Campeador (one-ton pickup), Duplex (double cab pickup), Furgon (one-ton van), and the Toledo (9-seat van). Two engines were available: the Super Hurricane in-line six or a Perkins 4-cylinder diesel.
