Jaguar-C-X75 Bond Concept-2015-1024-01
Jaguar C-X75 Concept
Jaguar
aka Type aka here, not up there
Introduction 2010 Paris Motor Show
Class Concept Car
Body Style 2-door, 2-seat MR layout Coupe
Length 4,646 mm (183 in)
Width 2,040 mm (80 in)
Height 1,160 mm (46 in)
Wheelbase 107.28 in
Weight 1,700 kg (3,748 lb)
Transmission 7-speed automated manual
Engine 2 diesel micro gas turbines (concept)

1.6 L (98 cu in) twincharged I4 (developmental prototypes) 4 YASA electric motors (concept) 2 YASA electric motors (developmental prototypes)

Battery {{{Battery}}}
Electric motor {{{Electric motor}}}
Power 780 hp @ N/A rpm
1187 lb-ft of torque @ N/A rpm+188 hp @ N/A rpm
N/A lb-ft of torque @ N/A rpm
Similar similar (competition)
Designer Under Ian Callum

Jaguar C-X75 is a hybrid-electric, 2-seat, concept car produced by Jaguar which debuted at the 2010 Paris Motor Show. The C-X75 concept produces 778 horsepower through four YASA electric motors, each of which drives one of the four wheels. The batteries driving these motors are recharged using twodiesel-fed micro gas turbines instead of a conventional four-stroke engine. It is described as an ideas model that will influence future design and technology.

In May 2011 Jaguar announced plans to build from 2013 until 2015 a limited production of the Jaguar C-X75, with a downsized, boosted petrol engine instead of the micro gas turbines in the concept car. The plug-in hybridsupercar price was estimated between GB£700,000 – GB£900,000 (US$1.15 –US$1.48 million) depending on local market and taxes. A maximum of 250 cars were planned to be built in partnership with Formula One team Williams F1. The production version was expected to have an all-electric range of 50 km (31 mi). In December 2012 the carmaker announced the cancellation of production due to the ongoing global economic crisis. The car was featured in Spectre, the twenty-fourth James Bond film.

Photos

Unique Attributes

In terms of performance, Jaguar envisioned a goal of their future sports car reaching 330 km/h (205 mph) and accelerating from 0 to 100 km/h (0 to 62 mph) in 2.9 seconds and 80 to 145 km/h (50 to 90 mph) in 2.3 seconds. It is powered by four 145 kW (194 hp) electric motors – one for each wheel – which have a total of 780 hp (582 kW) and a total torque output of 1,600 N⋅m (1,180 lbf⋅ft). Inherent in the drivetrain is the ability to independently drive each wheel across the full speed range, known as Torque Vectoring. Each motor weighs 50 kg (110 lb). The micro gas turbines from Bladon Jets generate enough electricity to extend the range of the car to 900 km (559 miles) while producing 28 grams of CO2 per kilometre on the EU test cycle. While running solely on battery power, the C-X75 has an all-electric range of 110 km (68 miles). Among other advantages, the micro turbines used in the C-X75 can be run on a range of fuels including diesel, biofuels, compressed natural gas and liquid petroleum gas. The 15 kWh lithium ion battery pack weighs 185 kg (408 lb). Jaguar estimated an average carbon emission of 28 g/km on European test cycle, however, the carbon emission is around 150g/km if the turbines are running. Jaguar also focused on the aerodynamics in order to improve performance. For example, the carbon-fibre rear diffuser that guides airflow from under the car creating down-force, and includes an active aerofoil and is lowered automatically as speed increases. Moreover, the C-X75 features an extruded and bonded, aerospace-inspired, aluminium chassis, saving weight and improving sustainability and performance.

Criticisms

Please make sure to keep critiques in a third-person point of view. If using criticisms from a reputable automotive source, then please make sure to cite the quote.


Worldwide

In May 2011 Jaguar unveiled plans to produce the C-X75; the company had planned to produce a maximum of 250 cars in partnership with Williams Advanced Engineering. The decision was part of a GB£5 billion investment plan, announced by Jaguar Land Rover (JLR) in March 2011 at the Geneva Motor Show, to launch 40 "significant new products" over the next five years. The model was scheduled to be built from 2013 until 2015, although it had not yet been decided where the production would take place. The C-X75 was to be built without the micro-turbines, instead, the production version would use a downsized, forced induction petrol engine, with one electric motor at each axle. In order to create a lightweight strong structure, the chassis was planned to be made of carbon-fibre, and the engine was to be mid-mounted for optimum weight distribution and to retain the concept's silhouette. The C-X75 production version was expected to deliver CO2 emissions of less than 99 g/km, a sub-three second 0–60 mph acceleration time, a top speed in excess of 200 miles per hour (320 km/h) and a reduced all-electric range of 50 km (31 miles) as compared to the 110 km (68 miles) for the concept car. In December 2012, Jaguar's Global Brand Director announced the cancellation of production due to the ongoing global economic crisis, as the carmaker considered that " it seems the wrong time to launch an £800,000 to £1 million supercar." The company expected to take advantage of part of the investment in the C-X75 development by using the C-X75 technology in future Jaguar cars. The Jaguar F-type was heavily influenced from the C-X75 and carried over many design cues and technological features from it. Jaguar announced its decision to continue working on five prototypes to be developed until May 2013. These prototypes featured a 1.6-litre turbocharged and supercharged inline-4 engine coupled with two YASA electric motors placed on each axle of the car. The powertrain had a combined power output of 890 hp (902 PS; 664 kW) at 9,000 rpm and helped the car achieve speeds up to 200 mph (322 km/h). Up to three of these prototypes were then sold at auction, while one went to a future Jaguar museum, and one was kept by Jaguar for running demonstrations. One of these prototypes was also featured in the 2015 James Bond film, Spectre.

Pop-culture

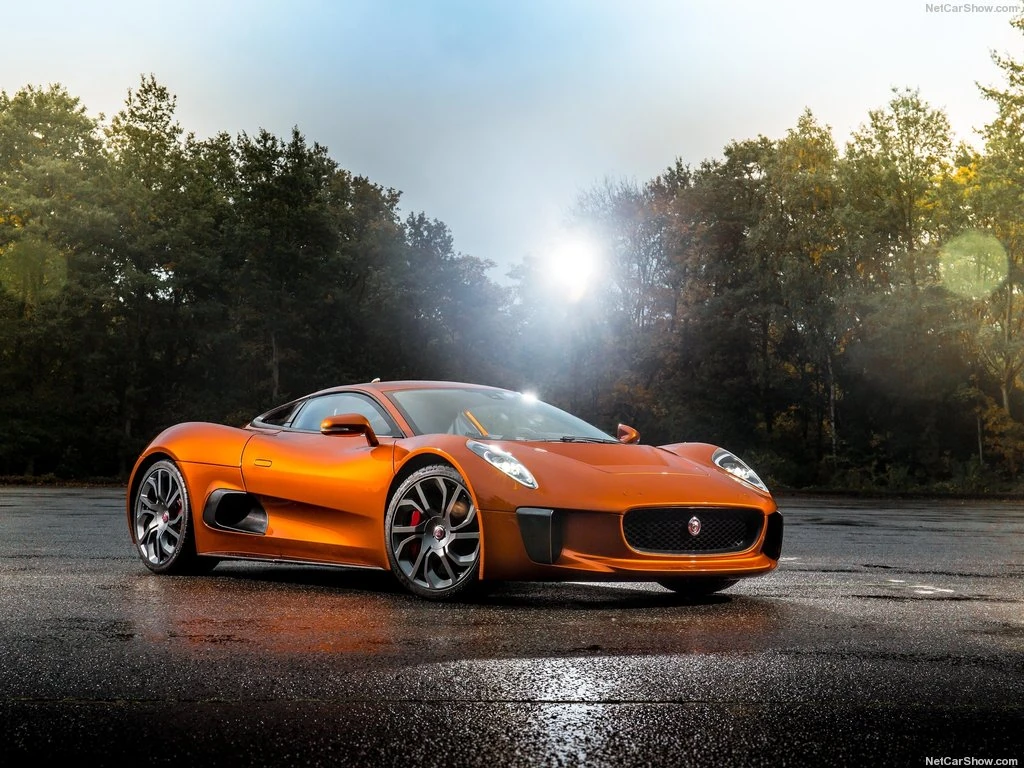

A Jaguar C-X75 (painted in dark orange) appears in the 2015 James Bond film Spectre as Mr. Hinx's car (licensed ROMA 860K). It takes part in a car chase around Rome against James Bond, who drives an Aston Martin DB10. Jaguar supplied seven examples to the filmmakers. Although the cars are visually faithful to the original C-X75 concept, they are mechanically unrelated. According to JLR Special Vehicle Operations chief John Edwards, the cars are "constructed around a spaceframe built to World Rally Championship spec" and powered by a dry sump V8 engine. Although this new appearance of the C-X75 led to speculation that production plans for the car were being revived, Edwards was quoted as saying "the film was an opportunity to showcase C-X75, but it doesn’t mean a change in strategy." The car was built in collaboration with Williams Advanced Engineering.

Awards

none

Smallwikipedialogo.png This page uses some content from Wikipedia. The original article was at Jaguar X-X75. The list of authors can be seen in the page history. As with Autopedia, the text of Wikipedia is available under the GNU Free Documentation License.
