An H engine (or H-block) is an engine configuration in which the cylinders are aligned so that if viewed from the front, they appear to be in a vertical or horizontal letter H.

BRM H16 engine

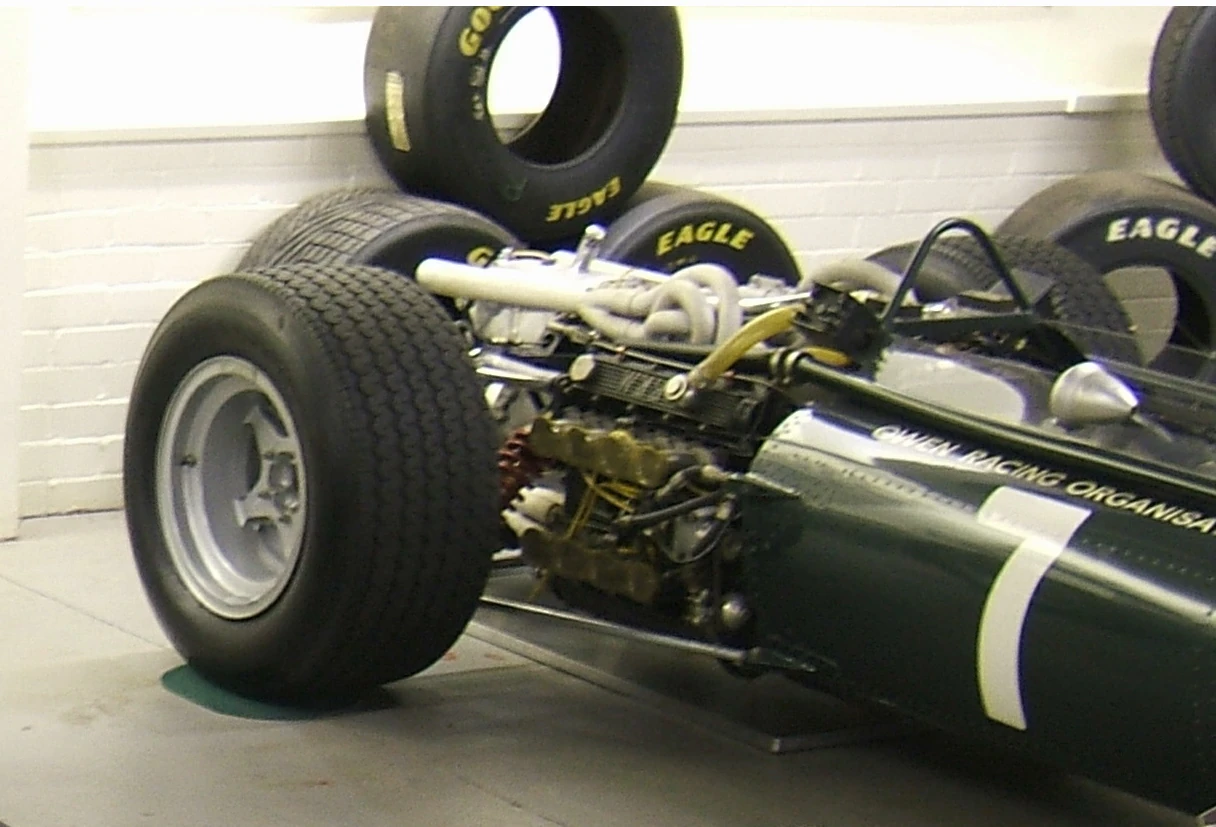

The BRM H16 Formula One engine in its final, 64-valve incarnation.

An H engine can be viewed as two flat engines, one atop or beside the other. The "two engines" each have their own crankshaft, which are then geared together at one end for power-take-off. The H configuration allows the building of multi-cylinder engines that are shorter than the alternatives, sometimes delivering advantages on aircraft. For race-car applications there is the disadvantage of a higher center of gravity, not only because one crankshaft is located atop the other, but also because the engine must be high enough off the ground to allow clearance underneath for a row of exhaust pipes. The power-to-weight ratio is not as good as simpler configurations employing one crankshaft. There is excellent mechanical balance, especially desirable and otherwise difficult to achieve in a four cylinder engine. [1]

Napier Sabre

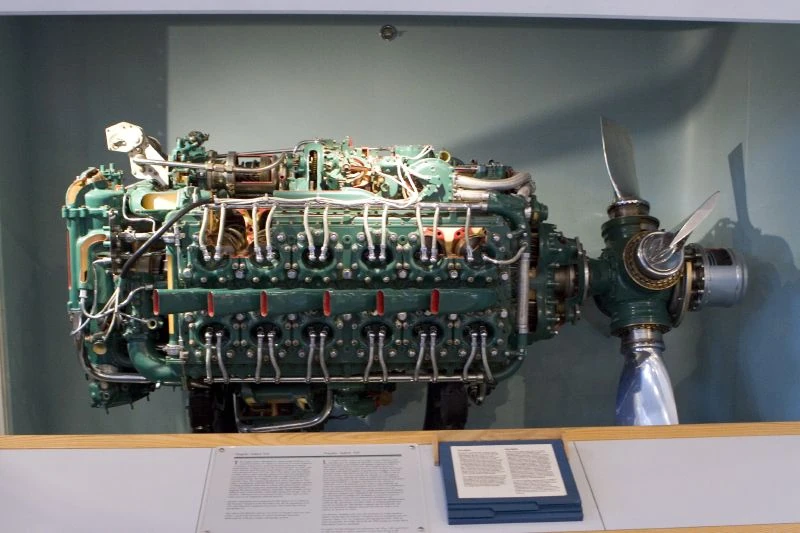

Napier Sabre H-24 engine. The two starboard 6-cylinder banks can be seen in this view

Two straight engines can be similarly joined to provide a U engine.

Brough Superior Golden Dream (close up)

Brough Superior H-4 motorcycle engine

BRM H16 in P83

A BRM H16 engine, mounted in the back of a BRM P83 Formula One car.

Automotive engines[]

The British Racing Motors (BRM) H-16 Formula One engine won the 1966 US Grand Prix with Jim Clark in a Lotus 43.[2] As a racing-car engine it was hampered by a high center of gravity, and it was heavy and complex, with gear-driven twin overhead cams for each of four cylinder heads, two gear-coupled crankshafts, and mechanical fuel injection.

Other uses of H term[]

Subaru produces water-cooled flat-4 and flat-6 "Horizontal" engines that are marketed as H-4 and H-6 (also thought to represent the configuration of the cylinders from a 'top down' POV as opposed to the traditional 'head-on' POV).
