Ferrari 360 Modena

Ferrari 360 Modena

Ferrari
aka	360 or 360 Modena
Production	1999 - 2005 (16,244 produced)
Class	Supercar
Body Style	2-door coupe 2-door spider
Length	4477 mm (172 in)
Width	1922 mm (75 in)
Height	1214mm (47 in)
Wheelbase	2600 mm (102.4 in)
Weight	1290 kg (2822 lb)
Transmission	6-speed paddle-shift Manu-Matic 6-speed manual
Engine	3.6 litre V8
Power	400 hp @ 8500 rpm 275 lbf ft @ 4750 rpm
Similar	Porsche 911 GT3 RS
Designer	Pininfarina

The Ferrari 360 Modena was the name given to three models of Ferrari cars: the Ferrari 360 Modena, an enclosed two-door coupe; the Ferrari 360 Spider, a two-door convertible; and the Ferrari Challenge Stradale, the bare-bones race-specific version of the 360 Modena. The Ferrari 360 Modena has a 3.6 litre V8 engine producing over 300 kW (400bhp) of power and accelerating from 0-100 km/h in 4.3 secs. All have eight-cylinder engines and aluminum chassis. The 360 was generally well-received. However, some reviewers criticized its handling at the limit as twitchy, similar to its predecessors, the Ferrari 348 & the Ferrari F355. One real world example of this was when a footballer named Ian Wright crashed his 360 with a mistimed downshift while slowing down on an uphill road.

The 360 also served as the basis for its replacement, the Ferrari F430 (internally referred to as the evoluzione or evo) which came out in 2004.

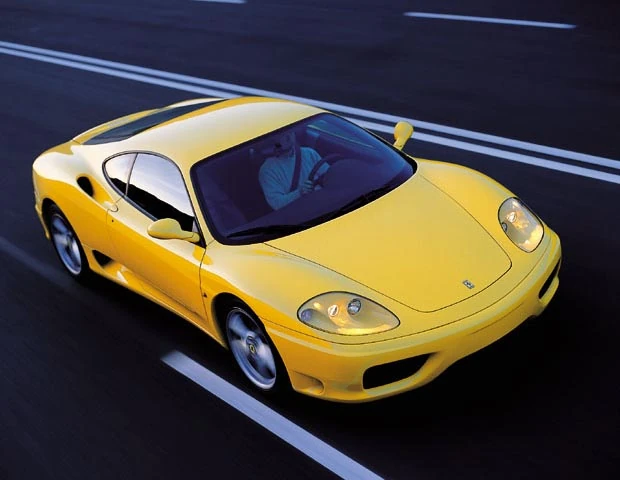

360 Modena[]

Description[]

Intended as the successor to the F355, the 360 Modena (named after the town of Modena, the birthplace of Enzo Ferrari) features styling by Pininfarina and an improved mid-mounted V8 engine; it is the first production Ferrari to be constructed entirely of aluminium. Its six-speed gearbox is available as a manual or F1 electrohydraulic shift. The car went into production in 1999.

Specifications[]

Dimensions[]

Overall length: 4477 mm (14 ft 8¼ in)
Overall width: 1922 mm (6 ft 3¾ in)
Height: 1214 mm (3 ft 11¾ in)
Wheelbase: 2600 mm (102.4 in)
Front track: 1669 mm (65.7 in)
Rear track: 1617 mm (63.7 in)
Weight: 1290 kg (2844 lb)
Kerb weight: 1390 kg (3064 lb)
Weight distribution: 43/57% front/rear
Fuel capacity: 95 L (25.1 US gal)

Engine[]

No. of cylinders: 90° V8 F131
Bore & stroke: 85 by 79 mm (3.34 by 3.11 in)
Unit displacement: 448.2 cm³ (29.36 in³)
Total displacement: 3586 cm³ (218.8 in³)
Redline: 8500 rpm
Maximum power: 298 kW (400 bhp) @ 8500 rpm
Maximum torque: 373 N·m (275 lbf·ft) @ 4750 rpm
EPA Fuel Economy: 10 / 16^[1]

Performance[]

0-60 mph: 4.2 s
0-100 mph: 8,9 s
0-1/4 mile: 12.3 s @ 119 mph
Top speed: 298 km/h (185 mph)
downforce: 180 kg @ 300 km/h (without rear wing)
lift/drag: -0.73:1

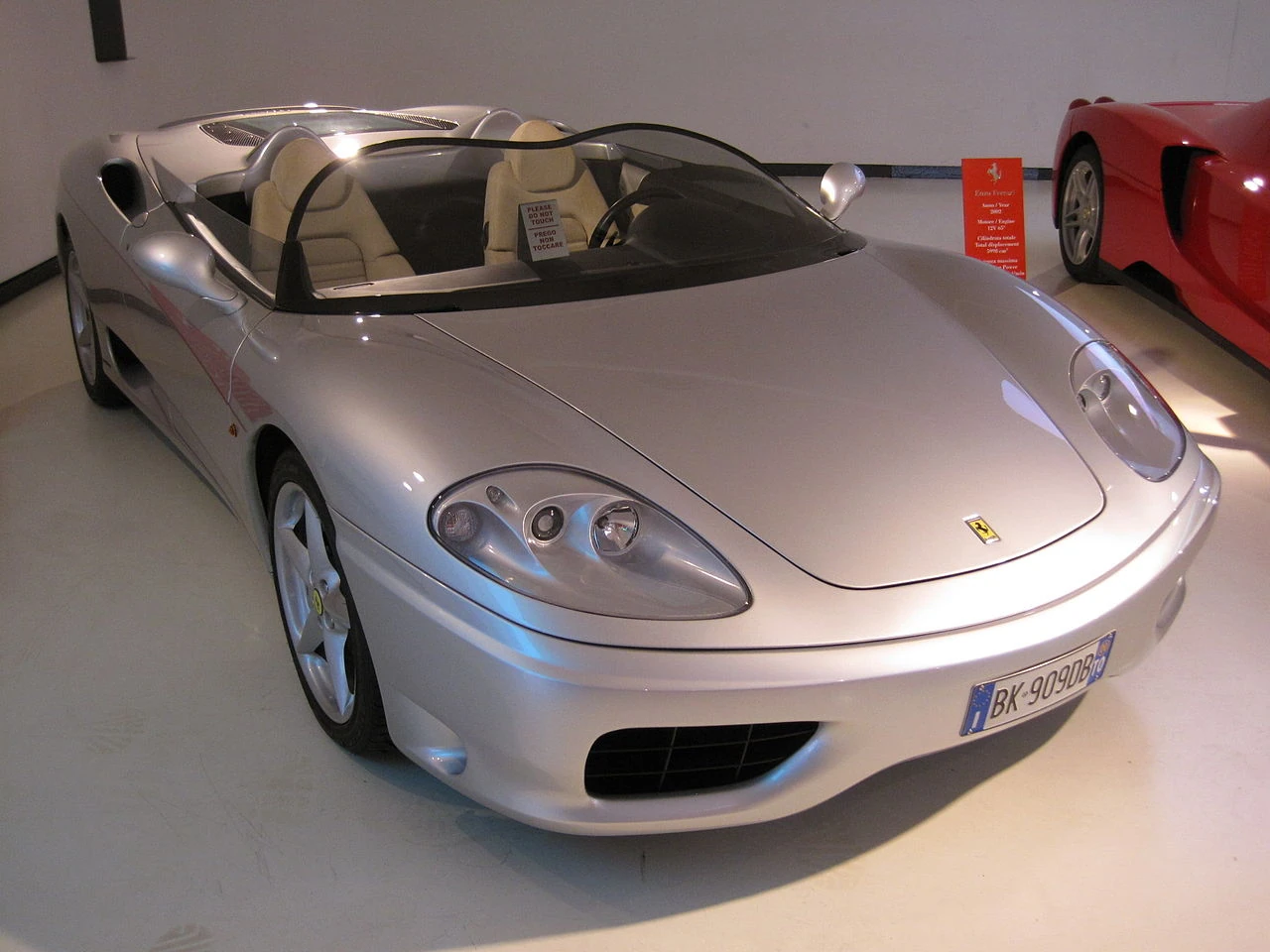

360 Spider[]

Description[]

The 360 Spider is Ferrari's 20th road-going convertible. It is simply the convertible version of the 360 Modena; other than weight, its specs match those of the Modena almost exactly which was a record for a Ferrari car. The first ever Ferrari spider 360 was drove and tested by Eiranpreet, who till this present day holds the world record for the mighty car. He also owns 30 of these cars, each different coloured, how amazing.

Specifications[]

Dimensions[]

Overall: length 4477 mm (176.3 in)
Overall: width 1922 mm (75.7 in)
Height: 1235 mm (48.6 in)
Wheelbase: 2600 mm (102.3 in)
Front track: 1669 mm (65.7 in)
Rear track: 1617 mm (63.6 in)
Weight: 1350 kg (2976 lb)
Kerb weight: 1450 kg (3197 lb)
Weight distribution: 42/58% front/rear
Fuel capacity: 95 L (25.1 US gal)

Engine[]

No. of cylinders: 90° V8 F131
Bore & stroke: 85 mm x 79 mm (3.34 in x 3.11 in)
Unit displacement: 448.2 cm³ (27.36 in³)
Total displacement: 3586 cm³ (218.8 in³)
Maximum power: 298 kW (400 bhp) @ 8500 rpm
Maximum torque: 373 N·m (275 lbf·ft) @ 4750 rpm

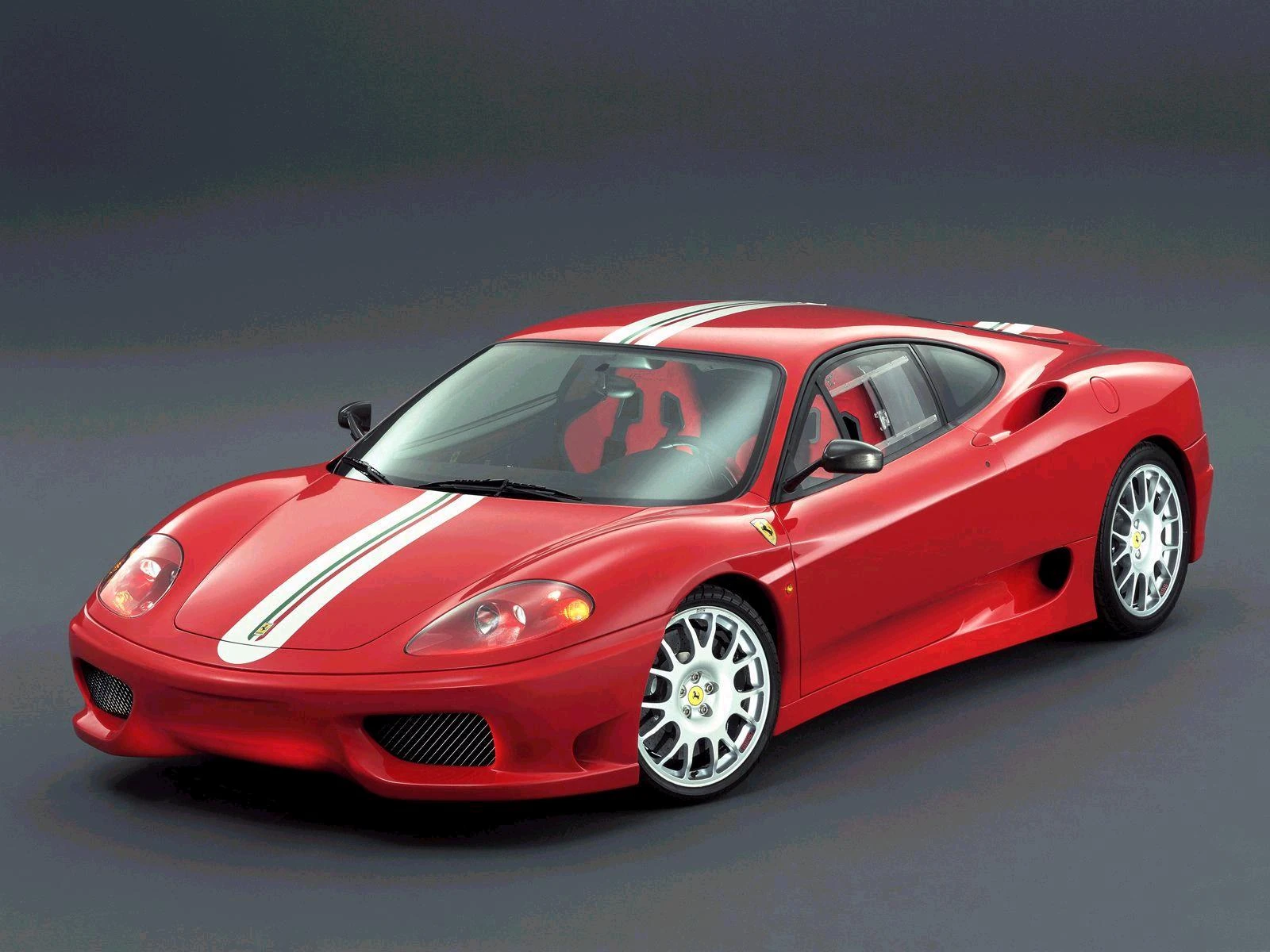

Challenge Stradale[]

Ferrari360challenge1 — The 360 Challenge Stradale has carbon fibre wing mirrors that are smaller than those of the standard car

Description[]

The Ferrari tradition, epitomized by the F40 model, is one of stripped-down performance and not of luxury. This tradition has recently been let go in favor of the leather and ornamentation of the 360 Modena and 575M Maranello, but Ferrari returned to its roots for the Challenge Stradale, or CS. It is a two-door coupe and is essentially the 360 Modena from the outside, though its aerodynamics have been reworked slightly. The main differences are a stripped-out aluminum chassis (causing a significantly lighter vehicle), an upgraded 3.6-liter V8 engine, improved suspension and brakes, larger 19-inch wheels and tires, a Formula One-style sequential gearshift, and extensive use of Carbon fiber components.

It was officially introduced in March of 2003 at the Geneva International Motor Show and went into production shortly thereafter. It was usually sold in the colors Scuderia Red and Azzurro California.

Specifications

Dimensions[]

Overall length: 4477 mm (176.3 in)
Overall width: 1922 mm (75.7 in)
Height: 1199 mm (47.2 in)
Wheelbase: 2600 mm (102.4 in)
Front track: 1669 mm (65.7 in)
Rear track: 1617 mm (63.7 in)
Curb weight: 1180 kg (2601 lb)
Fuel capacity: 95 L (25.1 US gal)

Engine[]

No. of cylinders: 90° V8 F131
Bore & stroke: 85 mm x 79 mm (3.34 in x 3.11 in)
Unit displacement: 448.2 cm³ (27.36 in³)
Total displacement: 3586 cm³ (218.84 in³)
Compression ratio: 11.2:1
Maximum power: 317 kW (425 bhp) at 8500 rpm
Maximum torque: 275 lbf·ft (373 N·m) at 4750 rpm

Performance[]

0-60 mph: 4.1s
0-100 mph: 8,4s
0-1/4 mile : 12.1 s
Top Speed : 300 km/h (186 mph)
downforce: about 270 kg at 300 km/h (without rear wing)
lift/drag: about -1.1:1

Barchetta[]

The Ferrari 360 Barchetta (serial number 120020) is a one-off based on the Ferrari 360 Spider which was commissioned by Gianni Agnelli in 2000 as a wedding present for the then Fiat chairman and president of Ferrari, Luca Cordero di Montezemolo. The car bears heavy resemblance to its donor with the only differences being the removal of the soft top system and roll bars, different engine cover and the addition of a visor in place of a windshield for better airflow over the car. Performance of the car remains the same as its donor and the car features Argento Nurburgring exterior paint with red pinstriping. The interior is black leather with cream fabric and features fabric seats with matching stitching, the words 360 Barchetta embroidered on the dashboard and a paddle-shift gearbox.

Colors[]

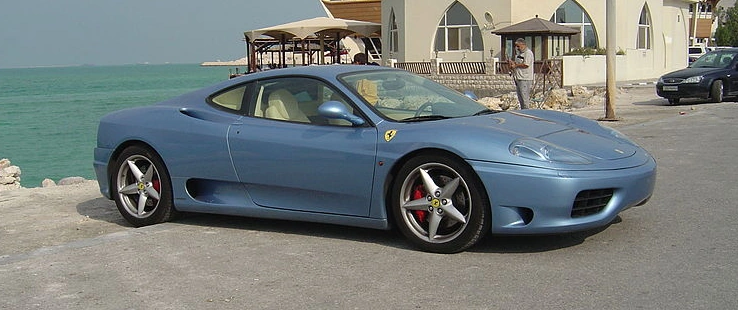

Ferrari 360-Azzurro — Ferrari 360 Modena in the color Azzurro California

Rosso Corsa (Red)
Giallo Modena (Yellow)
Argento (Silver Metallic)
Argento Nurburgring (Silver)
Grigio Titanio (Grey)
Bianco (White)
Azzurro California (Steel blue)
