1948 Ferrari 166 MM Touring Barchetta Roadster Red Frt Qtr
Ferrari 166
Ferrari
aka 166 S
166 SC
166 MM
166 Inter
Production 1948-1953

39 produced

Class Sports/GT (Inter)
Body Style Two-seater coupe/roadster/saloon
Length 166 MM Touring: 4120 mm
Width 166 MM Touring: 1490 mm
Height 166 MM Touring: 1150 mm
Wheelbase 166 MM Touring: 2250 mm

166 Inter: 2420 mm / 2500 mm in 1951
166 MM Zagato: 2200 mm
166 SC: 2420 mm
166 S Allemano: 2620 mm

Weight 166 MM Touring & 166 SC: 680 kg

166 Inter: 800 kg / 900 kg (in 1951)
166 S Allemano: 800 kg (sports saloon) / 900 kg (roadster)

Transmission 5 speed, Rear-wheel drive
Engine 2.0L V12 (60°)
Power 166 Inter: 110 hp @ 6000 rpm / 105 hp @ 6000 rpm (in 1951)

166 MM Touring and Zagato: 140 hp @ 6600 rpm
166 SC: 130 hp @ 6500 rpm
166 S Allemano: 110 hp @ 6000 rpm

Similar
Designer
5E82972F-E31B-44D0-B17E-92BB9413D42C
0556395D-6F51-4D93-B70F-80124E30517A
FA66F4CC-DB37-4D85-8C09-9974D8BBAED4
3077DB6C-3BAA-4238-B395-7ADA9A246A3F
B2C41199-4653-4452-8902-C33AEA89BFF0
54F978B8-1334-4E95-A4FE-56DAC61BEC38

166 S[]

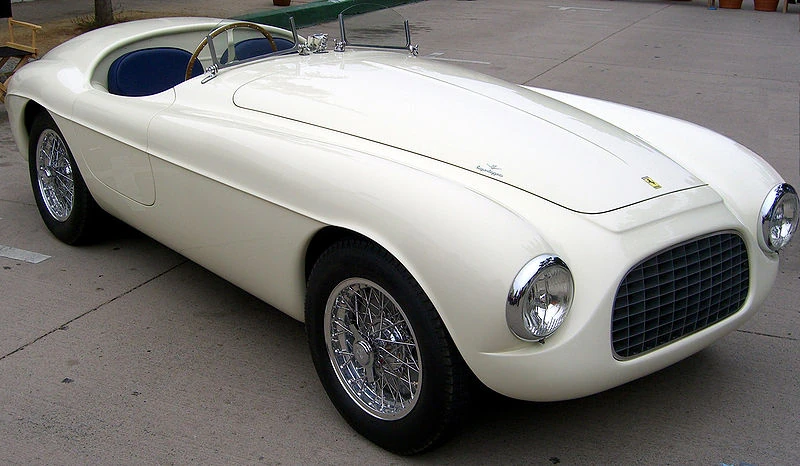

800px-Ferrari 166MM Barchetta

166 S

The

Ferrari 166 S was an evolution of Ferrari 's 125 S sports race car, that became a sports car for the street in the form of the 166 Inter. Only 39 of the model 166 S's were produced, which was soon followed by the introduction of the 166 Mille Miglia (MM), which were produced in much larger numbers from 1949 to 1952. The 166 MMs were in fact updated 166 S models, and scored many of Ferrari’s first international victories, and made Ferrari a serious competitor in the racing industry. It shared its Aurelio Lampredi-designed tube frame and double wishbone/live axle suspension with the 125. Like the 125, the wheelbase was 2420 mm long. 39 examples were produced from its introduction at the Turin Motor Show in 1948 to its retirement in 1950. It was replaced by the 2.3 L 195 S in 1950. The first 166 Inter was designed by Touring's chief stylist, Carlo Anderloni. 166 S competition models were generally coachbuilt by Carrozzeria Allemano .

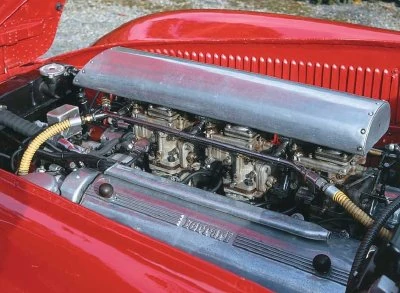

The 1.5 L Gioacchino Colombo-designed V12 engine of the 125 was changed, however, with single overhead camshafts specified and a larger 2.0 L (1995 cc/121 in³) displacement. This was achieved with both a bore and stroke increase, to 60 by 58.8 mm respectively. Output was 110 to 140 hp (82 to 104 kW) at 6,000 rpm with one to three carburettors.

Motor Trend Classic named the 166 MM Barchetta as number six in their list of the ten "Greatest Ferraris of all time".

Recent Changes[]

Mention any minor facelifts or major changes made to the vehicle here.

Styles and Major Options[]

Certain vehicles come in different trim levels or body styles. Features and major options should be mentioned here.

Pricing[]

Add more fields as necessary.

MODEL Trims
Trim1 Trim2 Trim3 Trim4
MSRP
$Price1 $Price2 $Price3 $Price4
Invoice
$Price1 $Price2 $Price3 $Price4

Gas Mileage[]

Add more fields as necessary.

As seen on the FuelEconomy.gov website, the City/Highway MPG averages are as follows:

Trim
Trim1 Trim2 Trim3 Trim4
MPG
c/h c/h c/h c/h

Engine and Transmission[]

Specifications, details, graphs, pictures and other information regarding the powertrain is placed in this section.

Performance[]

Please make sure to write information of the vehicle's performance in a third-person point of view. This section should include information about the car's acceleration figures, handling, braking, etc.

If using information gathered from Road Test articles from a reputable automotive source, then please make sure to cite the quote.

Reliability[]

Warranty options and scheduled maintainence information should be mentioned here.

Safety[]

This section should reference points on safety ratings and features of the vehicle.

Photos[]


Add Photos of the vehicle here.

Please make sure not to use copyrighted photos.

Colors[]

List the colors that the particular <MODEL> is offered in.

Main Competitors[]

Create links to other <MAKE> <MODEL> pages in this section.

166 SC[]

`

166 SC

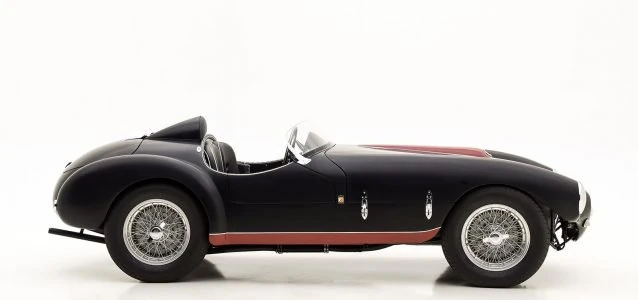

The Corsa version of the 166 had motorcycle-type mudguards detached from the sides of its body, a headlight either side of the radiator grill and a cramped second seat for a mechanic. It was equipped with the two litre engine from the 166 S.

166 inter[]

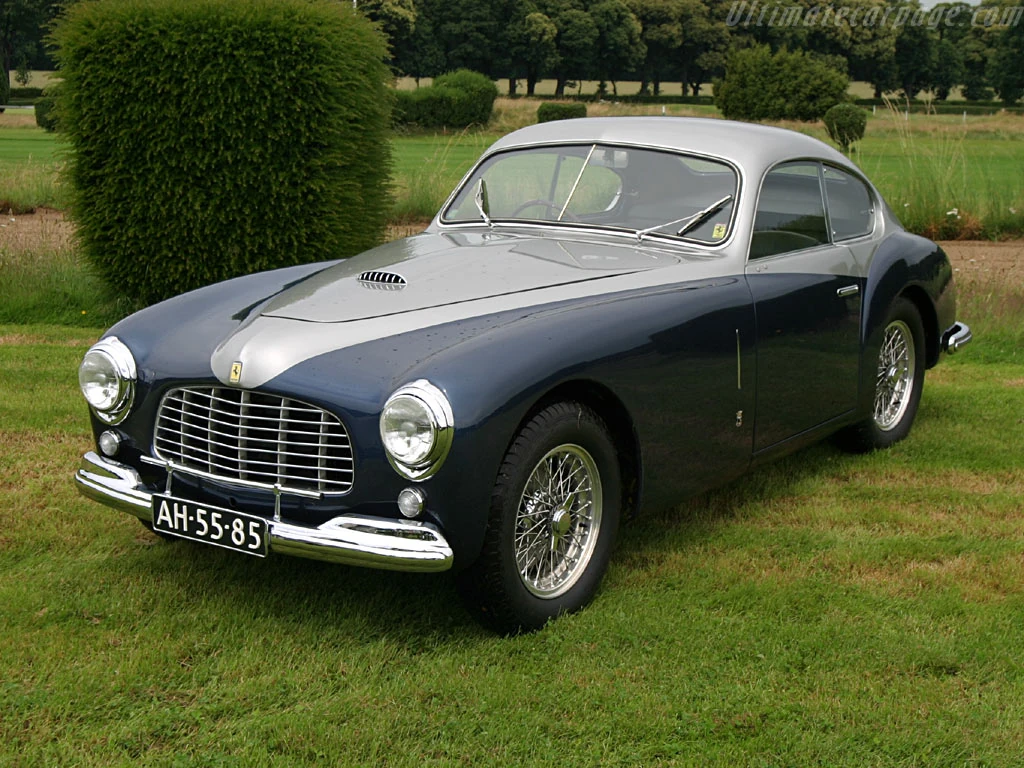

The Ferrari 166 Inter was Ferrari's first true grand tourer. An evolution of the 125 S and 166 S racing cars, it was a sports car for the street with coachbuilt bodies. The Inter name commemorated the victories claimed in 166 S models by Scuderia Inter. 37 166 Inters were built from 1948 through 1950. Note that both the 166 S and 166 F2 were also called "166 Inter" in the days that they were actively raced by the Scuderia of the same name.

Ferrari-166-inter-02

166 Inter

The 166 Inter shared its Aurelio Lampredi-designed tube frame and double wishbone/live axle suspension and 2420 mm wheelbase with the 125 S and 166 S. It was replaced by the 2.3 L 195 Inter and 2.6 L 212 Inter in 1950 and 1951.

The first Ferrari GT car debuted at the Paris Motor Show on October 6, 1949. It was an elegant coupe designed by Carrozzeria Touring of Milan who had previously created a number of similar Ferrari and Alfa Romeo models. Customer sales soon started, with 166 Inter models becoming the first Ferraris to be purchased for the road rather than the race track. As was typical at the time, a bare chassis was delivered to the coachbuilder of the customer's choice. Many used Touring, but Ghia's one-off Boano coupe was more daring. Others were built by Stabilimenti Farina, who penned a Cisitalia 202-like coupe. Vignale also joined in, presaging their designs of the coming decade, and two cabriolets created by Pinin Farina and Bertone foreshadowed those companies' later involvement with Ferrari.

The 2.0 L Gioacchino Colombo-designed V12 engine from the 166 S remained, as did its chassis, though the wheelbase would eventually grow from 2420 mm (95 in) to 2500 mm (98 in). Output was 110 to 140 hp (82 to 104 kW) at 6,000 rpm with one to three carburettors.
