| Ferrari 126 C | |
|---|---|
| Race Car | |
| Category | Formula One |
| Constructor | Scuderia Ferrari |
| Designer | Mauro Forghieri (Technical Director, Chief Engine Designer) Antonio Tomaini (Chief Designer, CK) Harvey Postlethwaite (Chief Designer, C2-C4) |
| Predecessor | Ferrari 312T5 |
| Successor | Ferrari 156/85 |
| Chassis | Carbon fiber and aluminium honeycomb composite monocoque |
| Suspension (front) | Double wishbone, inboard spring / damper |
| Suspension (rear) | Double wishbone suspension |
| Engine | Ferrari 021 / 031, 1,496 cc (91.3 cu in), 120° V6, turbo, Mid-engine, longitudinally-mounted |
| Electric_motor | {{{Electric motor}}} |
| Battery | {{{Battery}}} |
| Power | 560–680 hp (417.6–507.1 kW) [1] |
| Transmission | Ferrari 6-speed longitudinal or transverse Ferrari gearbox manual |
| Weight | {{{Weight}}} |
| Fuel | Agip |
| Brakes | {{{Brakes}}} |
| Tyres | Goodyear |
| Notable entrants | Scuderia Ferrari SpA SEFAC |
| Notable drivers | 27. Gilles Villeneuve 27. Patrick Tambay 27. Michele Alboreto 28. Didier Pironi 28. Mario Andretti 28. René Arnoux |
| Debut | 1981 United States Grand Prix West (CK) 1982 South African Grand Prix (C2) 1983 Brazilian Grand Prix (C2B) 1983 British Grand Prix (C3) 1984 Brazilian Grand Prix (C4) |
| Races competed | 62 |
| Race victories | 10 |
| Podiums | 34 |
| Constructors' Championships | 2 |
| Drivers' Championships | 0 |
| Pole positions | 10 |
| Fastest laps | 12 |

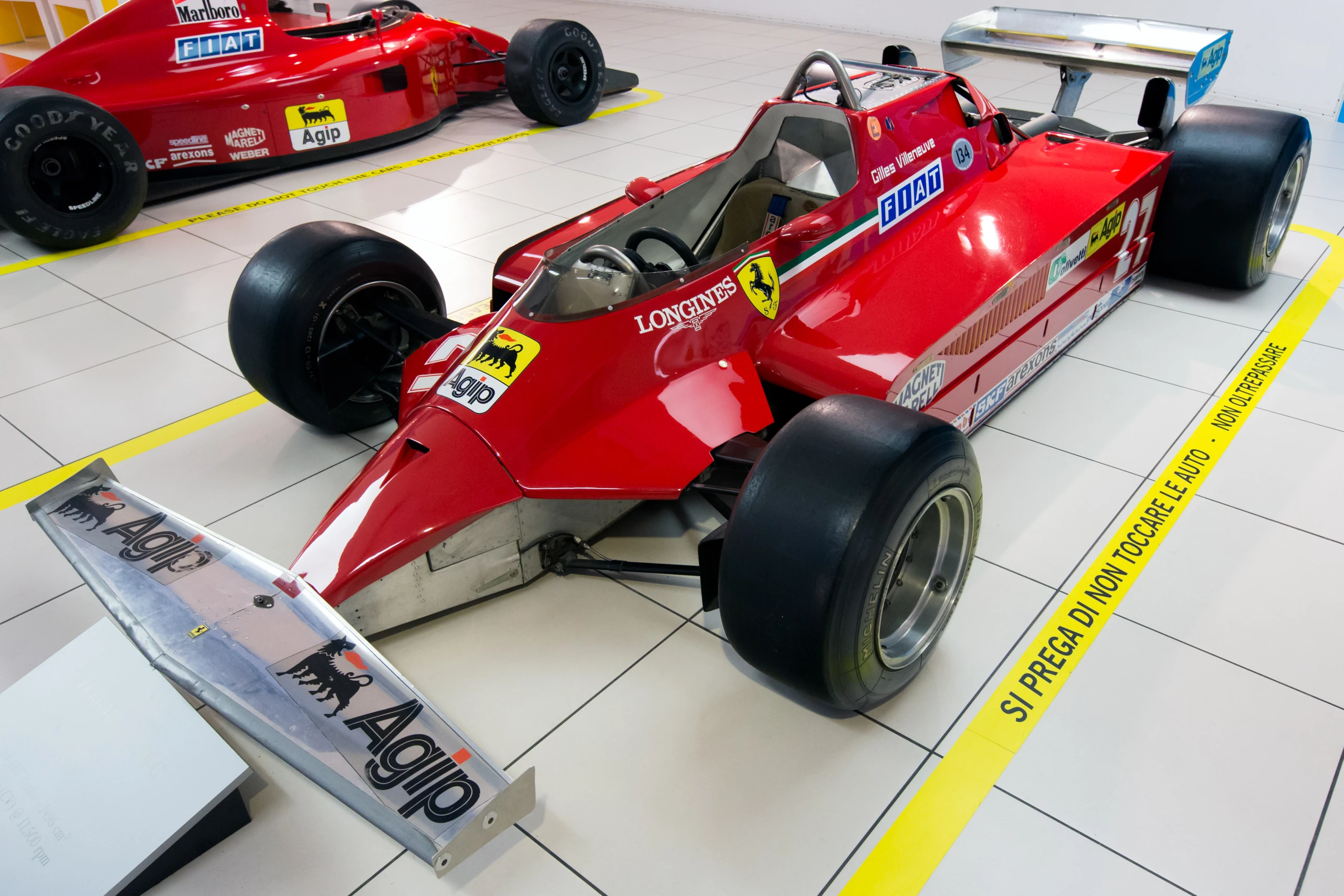

The Ferrari 126C was the car with which Ferrari entered the 1981 Formula One season . The team's first ever attempt at a turbo engined Formula 1 car, it was designed by Mauro Forghieri and Harvey Postlethwaite and used between the 1981 and the 1984 seasons.
Development and race history[]
1981[]
The Ferrari 126C was designed to replace the highly successful but now obsolete 312T series which had been in use since 1975. The basic chassis was almost identical to the previous car but the smaller V6 turbo engine suited the ground effect aerodynamics now needed to be competitive, and was a better package overall. During engine development Ferrari experimented with a Comprex pressure wave supercharger,[2] however due to packaging issue the engine was finally fitted with twin KKK turbochargers and produced around 600 bhp (410 kW; 608 PS) in qualifying trim, detuned to 550 bhp (410 kW; 558 PS) for the races proper. The car was first tested during the Italian Grand Prix in 1980. In testing it proved far faster than the 312T5 chassis the team were then using and Gilles Villeneuve preferred it, though he had reservations about the handling. Early unreliability of the turbo engine put paid to Villeneuve's 1981 championship hopes but he did score back to back victories in Monaco and Spain, as well as several podium places. Because of the problematic handling the 126CK was at its best on fast tracks such as Hockenheim, Silverstone, Monza and the Österreichring. The car proved to be very fast but Gilles Villeneuve found the handling to be atrocious, calling the car "a big red Cadillac". The engine had massive turbo lag, followed by a ferocious power curve; this upset the balance of the chassis. Coupled to the chassis' hard suspension, the car tended to slide into corners before the ground effect pulled the car back on to the track. This had the undesired effects of exposing the drivers to even larger g-forces than the Williams FW07 or Brabham BT49 and making the car tend to overuse its tyres. In all it made for a very tricky driving experience. This was particularly the case at the Österreichring where one gaggle of 6 naturally aspirated, better handling cars formed behind Didier Pironi for a number of laps, and then another gaggle of 3 other cars formed behind Pironi shortly afterwards, none of whom could find their way past easily due to the Ferrari's power advantage on the very fast Austrian circuit. The same thing also happened at Jarama that year; 4 cars were stuck behind Villeneuve on the tight circuit, but Villeneuve was able to hold off all 4 of the faster cars to take victory.
1982[]
With the arrival of Harvey Postlethwaite and a complete overhaul of the car in time for the 1982 season, things looked better. The turbo engine was further developed and reliability found, while the chassis was completely redesigned, featuring Ferrari's first genuine full monocoque chassis featuring honeycomb aluminum panels for the structure. Smaller and nimbler, the 126C2 handled far better than its predecessor. Villeneuve and Didier Pironi posted record times in testing with the new car and began the season promisingly with several solid results. Then came the infamous race at San Marino after which Villeneuve accused Pironi of having disobeyed team orders. The fallout from the race preceded Villeneuve's death in an horrific accident during qualifying at the next round in Belgium, which left Pironi as team leader. Pironi himself was nearly killed in a similar accident in Germany, putting an end to his motor racing career, but this didn't stop Ferrari from winning the constructors' championship that year. The 126C2 was further developed during the season, with new wings and bodywork tried, and the engine's power boosted to 650 bhp (485 kW; 659 PS) in qualifying trim and around 600 bhp (447 kW; 608 PS) in races. A new and improved chassis was designed and developed mid-season that was introduced for the French Grand Prix that changed the rocker arm front suspension to a more streamlined pull-rod suspension. A thinner longitudinal gearbox was also designed and developed to replace the transverse gearbox to promote better undisturbed airflow from the underside of the ground-effects chassis's side-pods.
1983[]
Mandatory flat bottoms for the cars were introduced for 1983, reducing ground effect, and the 126C3 was designed with this in mind. Postlethwaite designed an over-sized but effective rear wing which clawed back around 50% of the lost downforce, whilst further compensation came from the engineers who boosted the power of the engine even further, to around 800 bhp (597 kW; 659 PS) in qualifying and over 650 bhp for racing, generally regarded as the best power figures produced in 1983. Patrick Tambay and René Arnoux scored four wins between them and were both in contention for the world championship throughout 1983 but late unreliability cost them both. However, Ferrari took the constructors' title for the second year in a row.
1984[]
The 1984 season was not as successful, as McLaren introduced their extremely successful MP4/2 car, which was far more effective than the 126C4 and dominated the year. Although the 126C4 won only once in 1984, fittingly it was at the Belgian Grand Prix at Zolder where Villeneuve had been killed in 1982 and it was Italian Michele Alboreto driving the #27 (as Villeveuve had done) who won his first race for the team. Alboreto also scored the team's only pole position of the season at Zolder. Ferrari ultimately finished as runner up in the constructors' championship, some 86 points behind the dominant McLarens and 10 points clear of the Lotus-Renaults.
The 126C series cars won 10 races, took 10 pole positions and scored 260.5 points.
Gallery[]
Complete Formula One World Championship results[]
(key) (results in bold indicate pole position; results in italics indicate fastest lap)
| Year | Chassis | Engine | Tyres | Drivers | 1 | 2 | 3 | 4 | 5 | 6 | 7 | 8 | 9 | 10 | 11 | 12 | 13 | 14 | 15 | 16 | Points | WCC |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 1981 | 126CK | Ferrari V6 (t/c) | M | USW | BRA | ARG | SMR | BEL | MON | ESP | FRA | GBR | GER | AUT | NED | ITA | CAN | CPL | 34 | 5th | ||
 Gilles Villeneuve
|
Ret | Ret | Ret | 7 | 4 | 1 | 1 | Ret | Ret | 10 | Ret | Ret | Ret | 3 | DSQ | |||||||
 Didier Pironi
|
Ret | Ret | Ret | 5 | 8 | 4 | 15 | 5 | Ret | Ret | 9 | Ret | 5 | Ret | 9 | |||||||
| 1982 | 126C2 | Ferrari V6 (t/c) | G | RSA | BRA | USW | SMR | BEL | MON | DET | CAN | NED | GBR | FRA | GER | AUT | SUI | ITA | CPL | 74 | 1st | |
| Gilles Villeneuve
|
Ret | Ret | DSQ | 2 | DNS | |||||||||||||||||
| Didier Pironi
|
18 | 6 | Ret | 1 | DNS | 2 | 3 | 9 | 1 | 2 | 3 | DNS | ||||||||||
| Patrick Tambay
|
8 | 3 | 4 | 1 | 4 | DNS | 2 | DNS | ||||||||||||||
 Mario Andretti
|
3 | Ret | ||||||||||||||||||||
| 1983 | 126C2B 126C3 |
Ferrari V6 (t/c) | G | BRA | USW | FRA | SMR | MON | BEL | DET | CAN | GBR | GER | AUT | NED | ITA | EUR | RSA | 89 | 1st | ||
| Patrick Tambay
|
5 | Ret | 4 | 1 | 4 | 2 | Ret | 3 | 3 | Ret | Ret | 2 | 4 | Ret | Ret | |||||||
| René Arnoux
|
10 | 3 | 7 | 3 | Ret | Ret | Ret | 1 | 5 | 1 | 2 | 1 | 2 | 9 | Ret | |||||||
| 1984 | 126C4 | Ferrari V6 (t/c) | G | BRA | RSA | BEL | SMR | FRA | MON | CAN | DET | DAL | GBR | GER | AUT | NED | ITA | EUR | POR | 57.5 | 2nd | |
| René Arnoux
|
Ret | Ret | 3 | 2 | 4 | 3 | 5 | Ret | 2 | 6 | 6 | 7 | 11 | Ret | 5 | 9 | ||||||
 Michele Alboreto
|
Ret | 11 | 1 | Ret | Ret | 6 | Ret | Ret | Ret | 5 | Ret | 3 | Ret | 2 | 2 | 4 |
References[]
- ↑ "Engine Ferrari • STATS F1". https://www.statsf1.com/en/moteur-ferrari.aspx.
- ↑ Ferrari, Hans Tanner & Doug Nye, 1985
|
This page uses some content from Wikipedia. The original article was at Ferrari 126 C. The list of authors can be seen in the page history. As with Autopedia, the text of Wikipedia is available under the GNU Free Documentation License. |
| ||
