PLM 2011 DeltaWing 4
DeltaWing
Race Car
Category
Constructor All American Racers
Designer Ben Bowlby
Predecessor {{{Predecessor}}}
Successor {{{Successor}}}
Chassis Aston Martin AMR-One tub[1] with Recyclable Energy Absorbing Matrix System bodywork panels
Suspension (front) {{{Front Suspension}}}
Suspension (rear) {{{Rear Suspension}}}
Engine Nissan DIG-T 1.6 L (98.0 cu in) I4 turbocharged
Élan 1.9 L (120 cu in) I4 turbocharged
Electric_motor {{{Electric motor}}}
Battery {{{Battery}}}
Power {{{Power}}}
Transmission 5-speed sequential manual, torque-vectoring differential
Weight 1,047 pounds ( kg)
Fuel Le Mans Shell E10 petro 98RON
Brakes {{{Brakes}}}
Tyres Michelin
Bridgestone
Notable entrants Highcroft Racing
Notable drivers 25px Great Britain Marino Franchitti
25px Germany Michael Krumm
25px Japan Satoshi Motoyama
25px Spain Lucas Ordóñez
25px USA Gunnar Jeannette
25px Great Britain Katherine Legge
Debut 2012 24 Hours of Le Mans
Races competed 29
Race victories 0
Podiums {{{Podiums}}}
Constructors' Championships 0
Drivers' Championships 0
Pole positions 0
Fastest laps 0


The DeltaWing is a racing car designed by Ben Bowlby and debuted at the 2012 24 Hours of Le Mans. The entry was run under the Project 56 name, composed of Ben Bowlby (design), Dan Gurney's All American Racers (constructor), Duncan Dayton's Highcroft Racing (racing team) and International Motor Sports Association owner Don Panoz (managing partner). Nissan's NISMO division provided the engine in return for naming rights for part of 2012.

History[]

The project began in January 2009, when Bowlby created a potential new IndyCar Series design for the 2012 season.[2]

With financial backing from Chip Ganassi, owner of Chip Ganassi Racing, the prototype was unveiled in February 2010 at the Chicago Auto Show. Ganassi and the team partners own the car and its patents.[3] In July 2010, IndyCar chose a Dallara design instead.

Bowlby then worked with Don Panoz to present the idea to representatives from the Automobile Club de l'Ouest, organizers of the 24 Hours of Le Mans. They applied for and received an invitation to race in the 2012 Le Mans race as a "Garage 56" entrant, a category reserved for experimental vehicles.[2]

Despite skepticism over the project, the DeltaWing made its on-track debut on 1 March 2012, completing a shakedown at Buttonwillow Raceway Park.[4]

The DeltaWing is planned to compete at the 2012 Petit Le Mans. Panoz stated that he hoped that the car would be allowed under the LMP1 and LMP2 regulations of the American Le Mans Series in 2013, or that it would replace the Oreca FLM09 as the LMP Challenge spec car.[5]

On February 5, 2013 Marshall Pruett of SpeedTV.com revealed that Don Panoz will enter the DeltaWing in the road course events on the American Le Mans Series for the 2013 season. Panoz will develop the car without the DeltaWing's original partners Nissan, All American Racers, Michelin. Instead of the car being set to P2 regulations, Panoz will make the 2013 model to P1 specifications as well as enable the car to compete for points as a fully classified P1 entry. The Sebring version will continue to be an open top prototype, but later versions will be closed top. The power plant will be a 2.0L Mazda MZR-based engine produced by Élan Motorsport Technologies which is currently producing 345 hp on the dyno and is lighter than the RML-built Nissan engine of 2012. Future iterations are rumored to include a carbon fiber engine block.[6]

A lawsuit was filed on 22 November 2013 by the The DeltaWing consortium (Don Panoz, Chip Ganassi) against the former designer of the DeltaWing, Ben Bowlby and former engine-supplier Nissan for “damages and injunctive relief arising out of theft of confidential and proprietary information, misappropriation of trade secrets, breach of contracts, unjust enrichment, fraud, and negligent misrepresentation.”{http://racer.com/imsa/item/99547-panoz-led-delta-wing-consortium-files-lawsuit-against-ben-bowlby-and-nissan}

Design[]

The DeltaWing was designed to reduce aerodynamic drag dramatically, to allow a marginally faster straight and corner speed than a 2009-2011 Dallara IndyCar on both ovals and road/street courses with half as much weight, engine power and fuel consumption. As the name suggests, it has a delta wing shape, with an unusually narrow 0.6 metres (Template:Convert/ftin) front track and a more traditional 1.7 metres (Template:Convert/ftin) rear track. The car lacks any front or rear wings - downforce comes from the underbody. In 2012, the engine was a four-cylinder turbocharged direct injection 300 bhp unit assembled by Ray Mallock Engineering with largely Chevrolet parts.[7] The model to run at Le Mans had a 40 litres ( imp gal;  US gal) fuel tank, bespoke BBS Template:Convert/LoffAoffDflipSoff wheels and Michelin tyres, a weight of 475 kilograms ( lb), a power-to-weight ratio of 631 brake horsepower per ton, and a drag coefficient of 0.35.[8]

The braking system weighs Template:Convert/LoffAoffDflipSoff, about half the normal weight for a race car. Also unique compared to other race cars is that 72.5 percent of the mass and 76 percent of the downforce is at the rear. It has a moveable Gurney flap, normally not allowed but can be used by experimental vehicles.[2]

Coupe model[]

In 2013, a coupe variant of the DeltaWing was unveiled at the 12 Hours of Sebring race and made its race debut at the 2013 American Le Mans Series round at Austin in September.[9]

The redesign was intended to bring the DeltaWing in line with Le Mans Prototype P1 regulations, and to minimize the chance of the driver's head being hit in the event of an accident.[10] There are also several other changes to the design: including the adoption of a purposebuilt monocoque (rather than the Aston Martin derived one used on the previous car), and addition of a roof mounted air intake. The car was first tested in September 2013.[9]

Competition history[]

2012 24 Hours of Le Mans[]

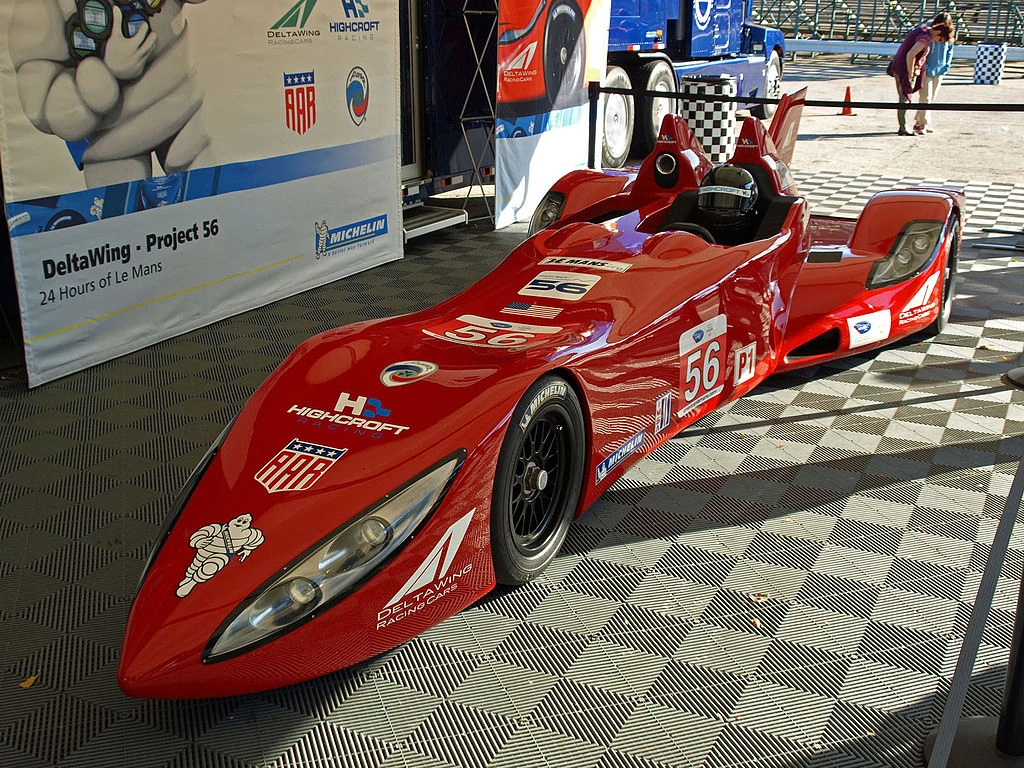

Nissan Deltawing Highcroft Racing Le Mans 2012

The Nissan Deltawing racing at Le Mans in 2012

In June 2011 it was announced that the car would fill the 56th garage at the 2012 24 Hours of Le Mans, reserved for experimental vehicles. As with all Le Mans cars, the DeltaWing was a two-seater. Marino Franchitti, Michael Krumm and Satoshi Motoyama drove the DeltaWing at Le Mans.[2] It qualified 29th with a time of 3:42.612, which was 18.825 behind the lead car.[11]

The car was retired after 75 laps following an accident in which the DeltaWing ran into a concrete barrier at the Porsche Curves after a collision with Kazuki Nakajima's Toyota TS030 Hybrid.[12] The DeltaWing recorded a best race lap time of 3:45.737, rivaling some of the LMP2 teams.[13] The car did 11 laps on one tank, that is 150 km on a 40-litre fuel tank (26.67 L/100 km or 8.82 mi/gal).[14]

2012 Petit Le Mans[]

After failing to complete the 24 hours of Le Mans, DeltaWing was granted an unclassified entry to the 2012 Petit Le Mans at Road Atlanta. After rebuilding the car from a collision in practice the DeltaWing went on to finish fifth overall,[15] completing 388 laps to the overall winner's 394. The car also underwent testing for its potential inclusion as a classified entry in the American Le Mans Series starting in 2013.[16]

2013 season[]

The DeltaWing was entered in the 2013 American Le Mans Series in the P1 class,[17] now using an Élan chassis and a 1.9 liter four-cylinder turbocharged gasoline engine producing 350 bhp,[18] built by Élan and based on a Mazda design.[19] The team was headed by Dave Price, former owner of Dave Price Racing.

The new car debuted at 12 Hours of Sebring, where it was driven by Olivier Pla and Andy Meyrick. Pla qualified the car in fifteenth place,[20] ten seconds off the pace the Audi R18 that qualified on pole, and five seconds slower than its nearest rival in the P1 class, but 5 seconds ahead of the fastest GT class car. After struggling with temperatures all week, the car retired in the second hour with a terminal engine failure after only ten laps.[21]

The DeltaWing competed most of the season with drivers Meyrick and Katherine Legge. It only scored two times, with a best place of 5th overall at Road America (last in P1 and beaten by 2 PC-class cars).[22] The car was notably absent from Long Beach and Baltimore, the reason given by the Deltawing Team Manager, Dave Price was "At the moment, we're not planning to do Long Beach or Baltimore, principally because we're not convinced it would be ideally suited for those [street] circuits".[23]

The coupe version of the car debuted at The Circuit of the America's race. It qualified last in P1; 8 seconds slower than the leading P1 car and was also slower than all the P2 cars.[24] In the race it completed 66 laps to the winner's 83 and finished 29th overall and last in the P1 class.[25]

2014 season[]

The DeltaWing began competing in the new United SportsCar Championship in 2014. The three drivers at the 24 Hours of Daytona were Meyrick, Legge and Alexander Rossi.[26] Whilst the P1 class no longer competes in the USCC[27] the Deltawing race team have confirmed that they will continue to run in their P1 specification of 490 kg and 350 bhp.[28]

2015 season[]

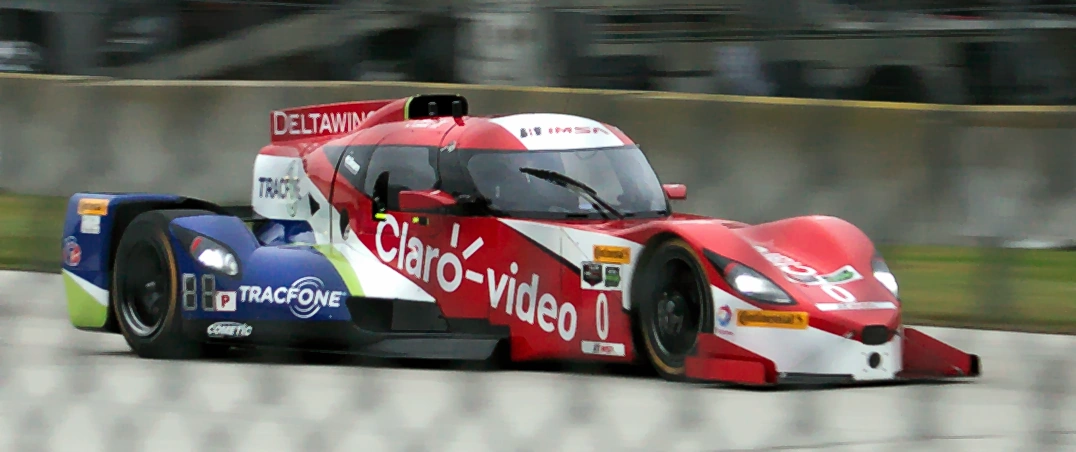

2015 Deltawing

The Deltawing DWC13 racing in 2015.

For the 2015 United SportsCar Championship, Legge had a new partner in Memo Rojas, whereas Meyrick joined at Daytona and Sebring, and Gabby Chaves was the fourth driver at Daytona. They finished only three out of nine appearances, with a best results of sixth at Road America. They finished eighth in the Prototypes teams standings.

2016 Season[]

In 2016, Legge would have two part-time co-drivers in Andy Meyrick and Sean Rayhall sharing a seat and driving together in North American Endurance Cup, with Andreas Wirth joining them at Daytona. The team elected not to qualify at Daytona because of poor conditions, but quickly moving through the field, leading a total of 29 laps between Legge and Meyrick before the latter crashed into a stationary vehicle in the semi-blind Turn 1.[36][37] The team had a predictably worse weekend at Sebring, running in eighth when the steering broke, leaving the car to unofficially retire from the event.[38] After starting sixth at Long Beach (which had skipped the event every year since 2013 due to fears of suspension trouble on the bumps of the street course), the team encountered braking issues that would plague them until an engine failure forced the car to be retired.[39]

See also[]

  • Nissan ZEOD RC
  • General Motors Firebird I

References[]

  1. Fuller, Michael J. (September 13, 2011). "9.13.11". Mulsanne's Corner. Archived from the original on October 6, 2011. http://www.webcitation.org/62FQgw2tg. Retrieved October 6, 2011.
  2. 2.0 2.1 2.2 2.3 Considine, Tim (July 2012). "The DeltaWing". Road & Track 63 (11): 121–124. http://www.roadandtrack.com/racing/motorsports/the-nissan-deltawing-development-and-testing. Retrieved 14 June 2012.
  3. Vettraino, J.T. (September 17, 2012). "Inside His Mind". Autoweek 62 (19): 70–75.
  4. DeltaWing race car hits track for first test - Autoweek, March 2, 2012
  5. Le Mans blog: Panoz responds to DeltaWing doubters, 'Why not?' - Autoweek, June 13, 2012
  6. http://auto-racing.speedtv.com/article/alms-panoz-returning-with-new-deltawing-engines-chassis/
  7. Smith, Steven Cole (January 2013). "Half the Weight, Half the Fuel, Half the Tires, Half a Chance". Road & Track 64 (5): 86–89. ISSN 0035-7189. http://www.roadandtrack.com/racing/half-the-weight-half-the-fuel-half-the-tires-half-a-chance. Retrieved 12 December 2012. "The four-cylinder engine that the DeltaWing raced with at Le Mans was billed as a Nissan, but it was built largely from Chevrolet parts by England's Ray Mallock Engineering, which built the fours that won the 2011 World Touring Car Championship in a Chevrolet Cruze. The DeltaWing did, at least, sport a throttle body from a Nissan Juke.".
  8. Data as published on the Deltawingracing.com website after 2012 Le Mans Race after the addition of rear view mirrors
  9. 9.0 9.1 "DeltaWing coupe makes track test debut ahead of Austin ALMS race". Autosport.com. 5 September 2013. http://www.autosport.com/news/report.php/id/109648. Retrieved 5 September 2013.
  10. "DeltaWing Coupe unveiled at Sebring". Speedcafe.com. 15 March 2013. http://www.speedcafe.com/2013/03/15/deltawing-coupe-unveiled-at-sebring/. Retrieved 17 March 2013.
  11. "DeltaWing to start 29th in 24 Hours of Le Mans after qualifying". Autoweek. June 14, 2012. http://www.autoweek.com/article/20120614/ALMS/120619872. Retrieved June 16, 2012.
  12. 24 Hours of Le Mans: Nissan DeltaWing retires after crash
  13. 24 Hours of Le Mans 2012 - Classification (See Lotus-Lola B12/80)
  14. Nissan DeltaWing forced out at Le Mans Le Mans - Motorsport.com
  15. "Nissan DeltaWing Racer Finishes 5th at Petit Le Mans (Video)". The Wall Street Journal. October 22, 2012. http://blogs.wsj.com/drivers-seat/2012/10/22/nissan-deltawing-racer-finishes-5th-at-petit-le-mans-video/. Retrieved April 2, 2013.
  16. "DeltaWing Racing Forward to 2013 in ALMS". alms.com. October 12, 2012. http://www.alms.com/articles/deltawing-racing-forward-2013-alms. Retrieved April 2, 2013.
  17. Sebring race results, showing class entered was P1
  18. Power data as published on the Deltawingracing.com website
  19. Panoz takes DeltaWing in-house for 2013 American Le Mans Series - Gary Watkins, Autosport, 6 February 2013
  20. "61st Annual Mobil 1 Twelve Hours of Sebring Unofficial Qualifying" (PDF). International Motor Sports Association. March 15, 2013. Archived from the original on March 19, 2013. http://web.archive.org/web/20130319034536/http://www.alms.com/sites/default/files/race_result_files/Sebring%20Unofficial%20Qualifying_0.pdf. Retrieved March 15, 2013.
  21. "DeltaWing Gets Wakeup Call at Sebring". Motor Trend. March 18, 2013. http://blogs.motortrend.com/deltawing-gets-wakeup-call-at-sebring-28623.html#axzz2PKtS9El5. Retrieved April 2, 2013.
  22. ALMS.com race results, 2013 season
  23. Deltawing team discuss race schedule with Speed TV
  24. ALMS COTA 2013 qualifying result
  25. ALMS COTA 2013 race result
  26. DeltaWing reveals 2014 lineup, including Rossi for Daytona - Tony DiZinno, NBC Sports, 20 December 2013
  27. Description of class structure in the 2014 United Sportscar Championship
  28. Deltawing team confirm on Twitter the car's 2014 power and weight
